| Brand Name: | Shandong Zhenyuan |
| Model Number: | SL330S |
| MOQ: | 1 |
| Price: | US$20000 |
| Payment Terms: | L/C,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 40 units per month |
Product Description

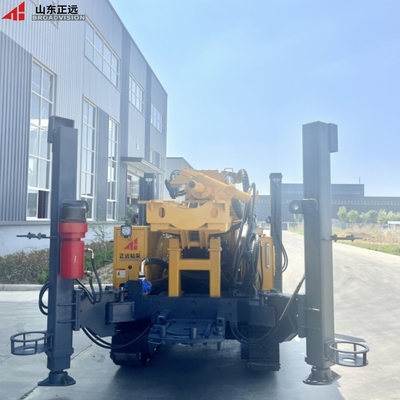

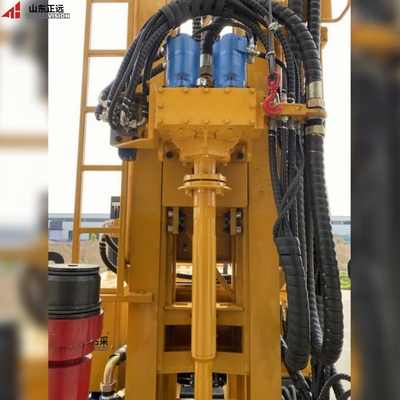

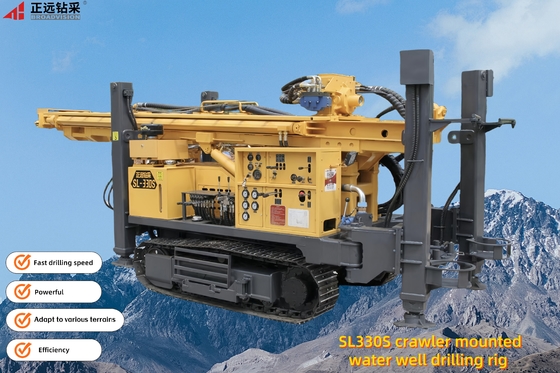

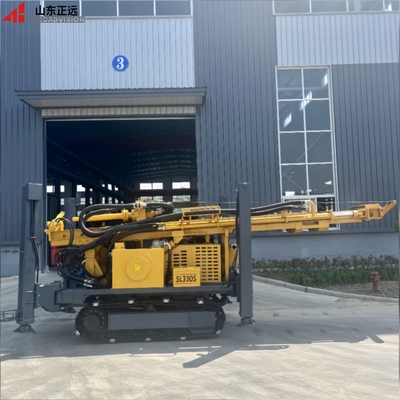

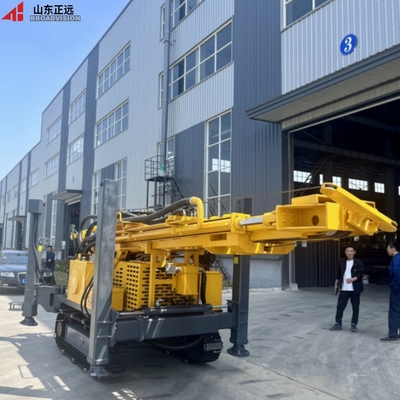

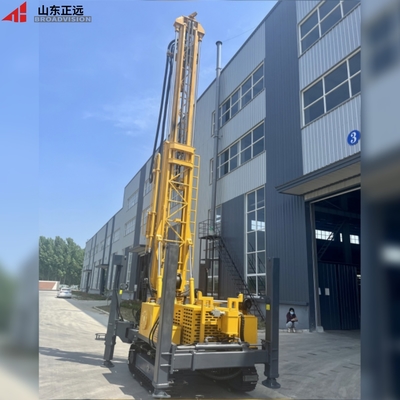

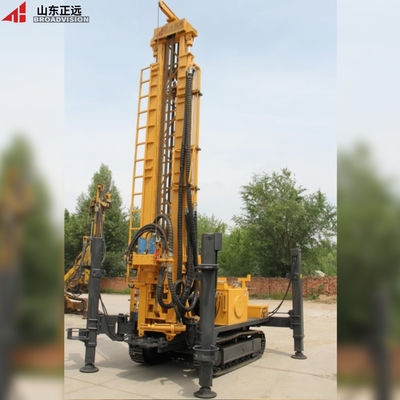

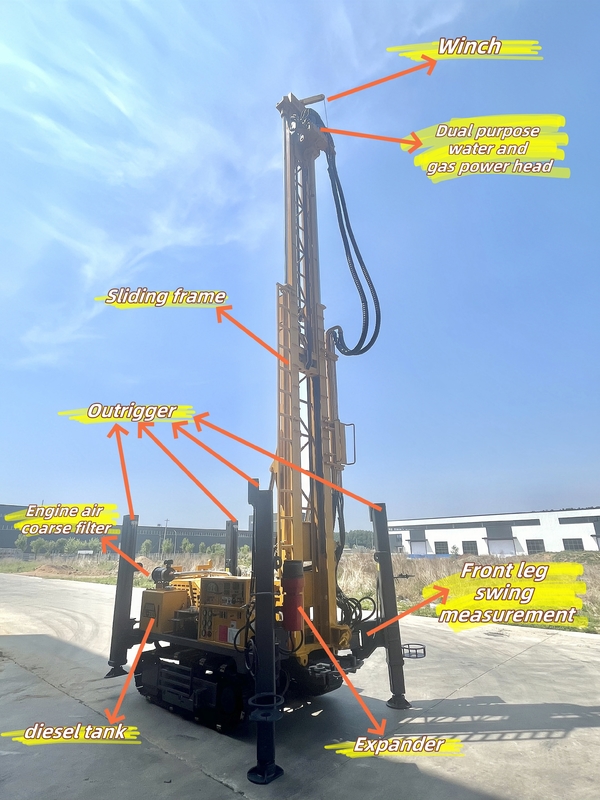

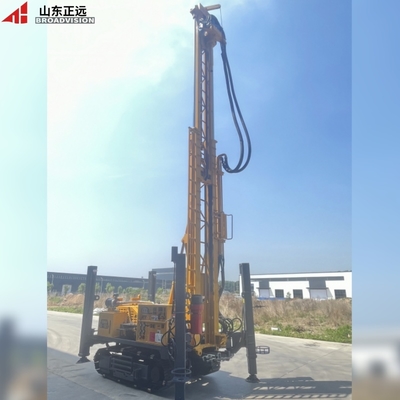

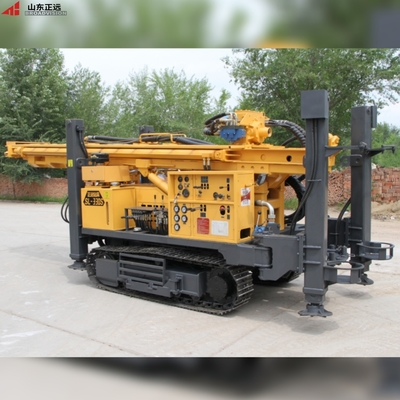

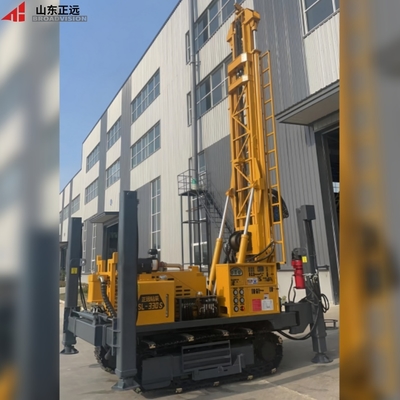

SL330S drilling rig lifts the drilling frame,picks up and unloads the drill pipe,rotates and feeds,outriggers,winches,walks and other actions are all realized by the hydraulic system,which greatly reduc- es the labour intensity and improves the construction efficiency and quality of the project.And each type of drilling rig can be converted into vehicle chassis.
Technical Parameter
| Technical parameters | Specifications | Technical parameters | Specifications |
|
Max drilling depth |
330m |
Max rotary torque |
8000/4000Nm |
|
Drilling diameter |
105-305mm |
Max rotary speed |
60/120r/min |
|
Air pressure |
1.2-3.5Mpa |
Small auxiliary winch lifting force |
1.5T |
|
Air consumption |
16-55m³/min |
Jacks stroke |
1.6m |
|
Drill pipe length |
6m |
Drillingefficiency |
10-35 |
|
Drillpipe diameter |
89mm |
Moving speed |
2.5Km/h |
|
Axial pressure |
3T |
Uphillangle |
21° |
|
Lifting force |
18T |
Weight of the rig |
8.2T |
|
Fast lifting speed |
30m/min |
Dimension |
6.32*1.7*2.39m |
|
Fast feeding speed |
60m/min |
Engine |
Yuchai Power91KW |
System certification certificate
After Sales Service
As a high-quality enterprise that values customer satisfaction, Shandong Zhengyuan is committed to providing excellent after-sales service to ensure that every customer has a worry free user experience after purchasing our products. We have a professional after-sales service team, proficient in product knowledge and technology, and provide customers with comprehensive, efficient, and friendly after-sales service.
1.Service Guarantee
Shandong Zhengyuan Drilling and Mining Intelligent Equipment Co., Ltd.
Vehicle Customization Series
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Do you provide after-sales service overseas?
A: Yes, We provide overseas after-sales service.
Q: Can I request a customized rig size?
A: Absolutely! We offer rig attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
