| Brand Name: | ZHENGYUAN |
| Model Number: | ZB350S |
| MOQ: | 1 set |
| Price: | $38000-$42000 |
| Payment Terms: | tt,L/C,T/T,Western Union,MoneyGram |
| Supply Ability: | 25 sets / month |
330 M Well Water Drill Rig Introduction
1. Overview
A well water drill rig is specialized equipment used to bore holes into the ground to access groundwater for residential, agricultural, industrial, or geothermal purposes. These rigs vary in design and capability to suit different terrains and project requirements.
2. Advantages
Versatility: Capable of drilling in diverse terrains (soil, sand, rock).
Efficiency: Modern rigs feature automation and advanced drilling techniques (e.g., rotary, reverse circulation) for faster results.
Mobility: Truck-mounted or portable units enable access to remote areas.
Sustainability: Provides reliable water access in regions with scarce surface water.
Customization: Adaptable to project needs (depth, diameter, power source).
3. Market Overview
Demand Drivers: Water scarcity, agricultural irrigation (notably in Asia and Africa), rural residential use, and geothermal energy projects.
Key Regions: High growth in developing countries (India, Nigeria); steady demand in North America/Europe for private wells.
Environmental Trends: Eco-friendly rigs with reduced emissions and efficient resource use are gaining traction.
| Technical parameters | SL330S |
| Max drilling depth(M) | 330 |
| Power(KW) | 91 |
| Drilling diameter(mm) | 105-305 |
| Air pressure(Mpa) | 1.2-3.5 |
| Air consumption(m³/min) | 16-55 |
| Drill pipe length(m) | 7 |
| Drill pipe diameter(mm) | 89 |
| Axial pressure(T) | 3 |
| Lifting force(T) | 18 |
| Fast lifting speed(m/min) | 30 |
| Fast feeding speed(m/min) | 60 |
| Max rotary torque(Nm) | 8000/4000 |
| Max rotary speed(r/min) | 60/120 |
| Big secondary winch lifting force(T) | - |
| Small secondary winch lifting force(T) | 1.5 |
| Jacks stroke(m) | 1.6 |
| Drilling efficiency(m/h) | 10-35 |
| Moving speed(km/h) | 2.5 |
| Uphill angle(Slope) | 21° |
| Weight of the rig(T) | 8.3 |
| Dimension(M) | 6.32*1.7*2.39 |
| Working condition | Unconsolidated formation and stone head |
| Drilling method | Top drive hydraulic rotary and pushing, hammer or mud drilling |
| Matched DTH hammer | Medium and high air pressure series |
| Optional accessories | Mud pump,Centrifugal pump,Generator,foam pump,Truck |

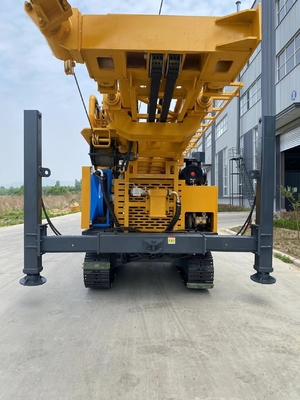

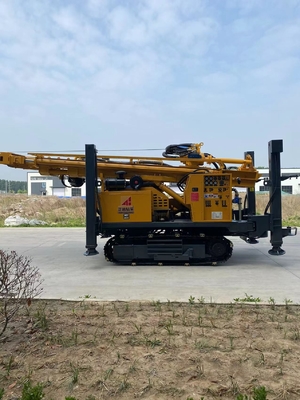

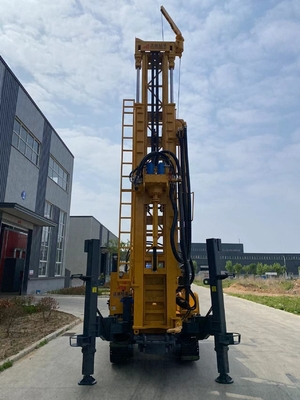

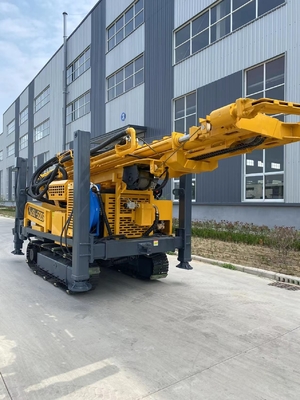

The 350S type water well drilling rig is a light, efficient and multifunctional crawler-type full hydraulic drilling rig. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
SL330S can drill holes in different strata (rock layer, mud layer, sand layer), and the maximum diameter can reach 350mm.Unique bump design and centralized control operating system are easy to maintain and operate.This machine adopts excavator crawler chassis, which has high off-road performance and can also be installed on trucks, with stronger mobility.
Who are we?
Zhengyuan Serises crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
Zhengyuan Serises deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer,and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
Shandong Zhengyuan Drilling and Production Intelligent Equipment Co., Ltd. was established on June 29, 2019. We have established complete production workshops, research and development workshops, and their supporting facilities, specializing in the scientific research and development, design and manufacturing, and engineering construction of various perforation equipment. We are a water well drilling rig service provider that integrates research and development, manufacturing, and sales. Our company's products are widely used in various fields such as water wells, rescue wells, dewatering wells, large-diameter blasting holes in mines (replacing rotary drills), exploration sampling, hydropower, highways, coal, oil, natural gas, coalbed methane, municipal engineering, monitoring wells, ground source heat pump holes, anchoring, and non excavation.
The zhengyuan Zhongbang series products are a newly developed series of products by our company aimed at meeting the needs of foreign markets and domestic mid to low end customers. This series of products not only retains the stability of the Zhengyuan drilling and mining series products, but also further reduces production and manufacturing costs, optimizes the supply chain of complete machine spare parts, and is the most cost-effective drilling rig product in China. The products have improved the product line of the Zhengyuan family and enhanced the competitiveness of the Zhengyuan brand in the mid to low end market.
