Factory Manufactures Multi-Function Rotary Core Drilling Rig for Drilling 500 Meters Depth

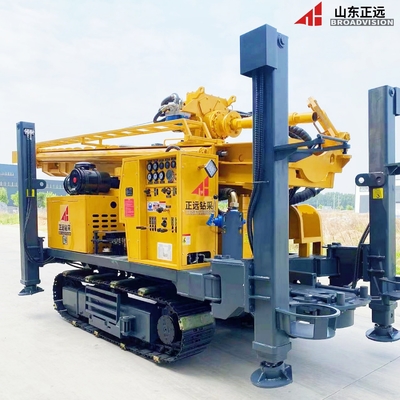

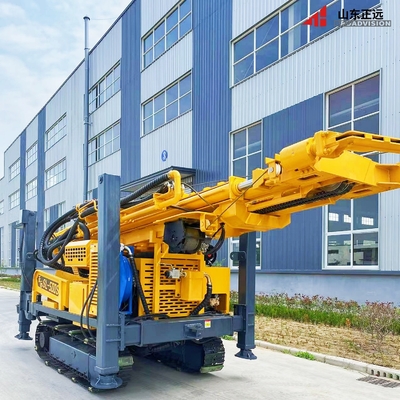

   The 500 type water well drilling rig is a light, efficient and multifunctional crawler-type full hydraulic drilling rig. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
SL500S    can drill holes in different strata (rock layer, mud layer, sand layer), and the maximum diameter can reach 4000mm.Unique bump design and centralized control operating system are easy to maintain and operate.This machine adopts excavator crawler chassis, which has high off-road performance and can also be installed on trucks, with stronger mobility.
   Zhengyuan Serises crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
  Zhengyuan Serises deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer,and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.


Feature

 >>The drilling rig can use air DTH Hammer drilling and mud drilling. >> Centralized control console is suitable for each manipulation and control.Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency. >> The main drive system, the transfer case gearbox, double-winch unit, mud pump,turntable,drilling tower, feed system are setup on the chassis. >> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay,sand and rock if it is equipped with suitabledrilling bit. >> The power of drilling rig comes from aYuchai engine,132kw engine drivesthe large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
 >> The rotary head,have two gear,rotation speed is 90-180rpm stepless adjustment and the rotary torque is 12000/6000Nm.
 >> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
 >> It can set up a generator which is convenient to welding or illuminate for work at night.
 >> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
 >> The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
 >> The tools winch winch is used for auxiliary lifting and casin.
 >> The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
 >> Competitive in price, low cost of maintain.

According to different geological condition to choose different working ways and equip different drill tools.

Shandong Zhengyuan Drilling and Production Intelligent Equipment Co., Ltd. was established on June 29, 2019. We have established complete production workshops, research and development workshops, and their supporting facilities, specializing in the scientific research and development, design and manufacturing, and engineering construction of various perforation equipment. We are a water well drilling rig service provider that integrates research and development, manufacturing, and sales. Our company's products are widely used in various fields such as water wells, rescue wells, dewatering wells, large-diameter blasting holes in mines (replacing rotary drills), exploration sampling, hydropower, highways, coal, oil, natural gas, coalbed methane, municipal engineering, monitoring wells, ground source heat pump holes, anchoring, and non excavation.

The zhengyuan Zhongbang series products are a newly developed series of products by our company aimed at meeting the needs of foreign markets and domestic mid to low end customers. This series of products not only retains the stability of the Zhengyuan drilling and mining series products, but also further reduces production and manufacturing costs, optimizes the supply chain of complete machine spare parts, and is the most cost-effective drilling rig product in China. The products have improved the product line of the Zhengyuan family and enhanced the competitiveness of the Zhengyuan brand in the mid to low end market.

1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.

2. How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment;and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.

3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.

4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.

5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.

6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.

7.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
