| Brand Name: | ZHENGYUAN |
| Model Number: | 750S |
| MOQ: | 1 set |
| Price: | US$56,000.00-60,000.00 |
| Payment Terms: | tt,L/C,T/T,Western Union,MoneyGram |
| Supply Ability: | 25 sets / month |

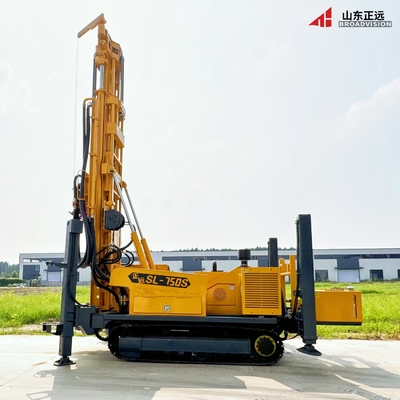

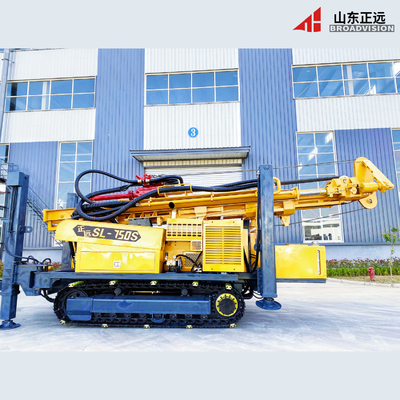

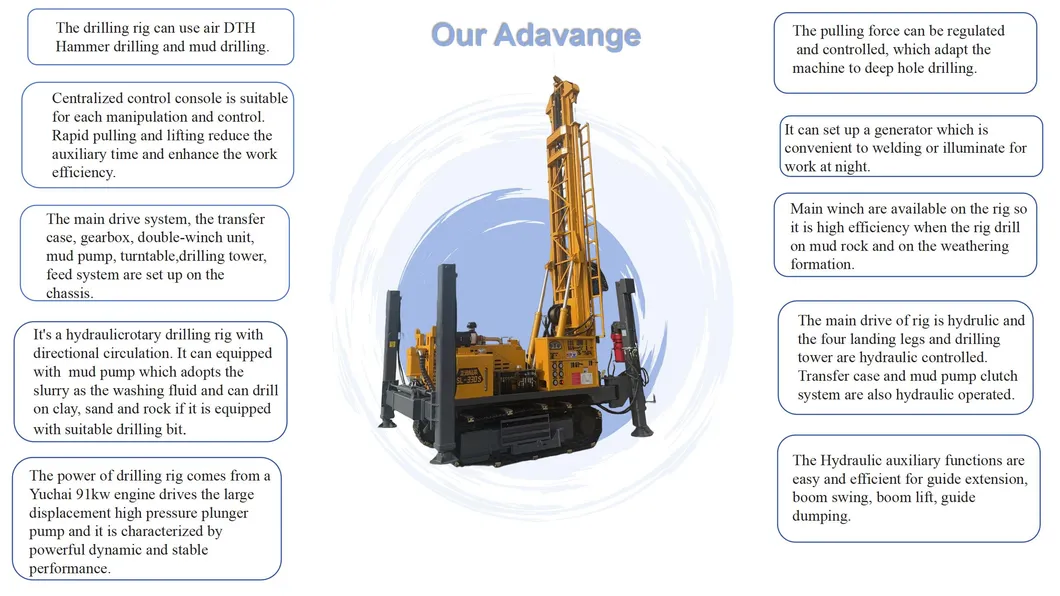

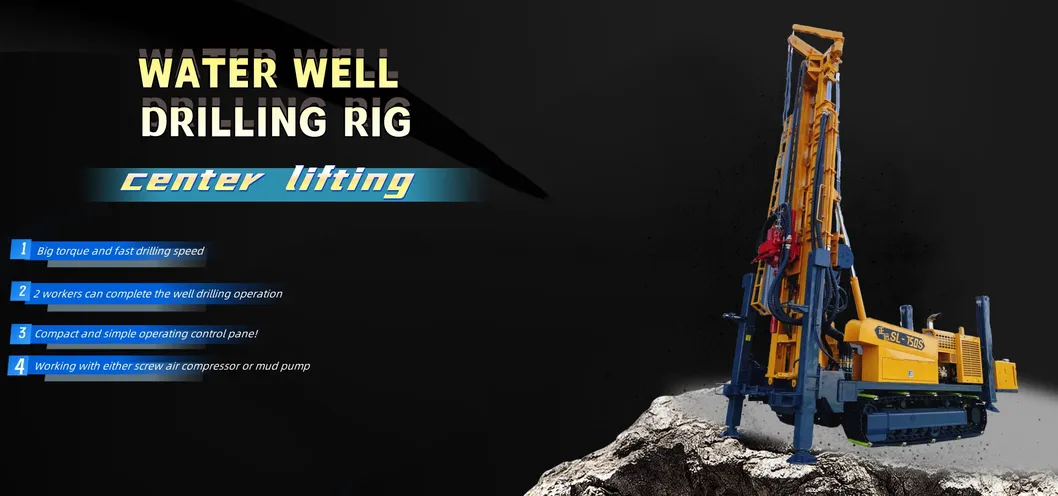

Zhengyuan Serises crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
Zhengyuan Serises deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer,and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
| Technical parameters | SL750S |
| Max drilling depth(M) | 750 |
| Drilling diameter(mm) | 105-450 |
| Air pressure(Mpa) | 1.6-6 |
| Air consumption(m³/min) | 16-75 |
| Drill pipe length(m) | 6 |
| Drill pipe diameter(mm) | 102 |
| Axial pressure(T) | 6 |
| Lifting force(T) | 40 |
| Fast lifting speed(m/min) | 31 |
| Fast feeding speed(m/min) | 65 |
| Max rotary torque(Nm) | 13000/6500 15000/7500 |
| Max rotary speed(r/min) | 95/190 |
| Big secondary winch lifting force(T) | Can be added 5 tons |
| Small secondary winch lifting force(T) | 2.5 |
| Jacks stroke(m) | 1.6 |
| Drilling efficiency(m/h) | 10-35 |
| Moving speed(km/h) | 3 |
| Uphill angle(Slope) | 21° |
| Weight of the rig(T) | 14 |
| Dimension(M) | 6.63*2.25*2.59 |
| Working condition | Unconsolidated formation and stone head |
| Drilling method | Top drive hydraulic rotary and pushing, hammer or mud drilling |
| Matched DTH hammer | Medium and high air pressure series |

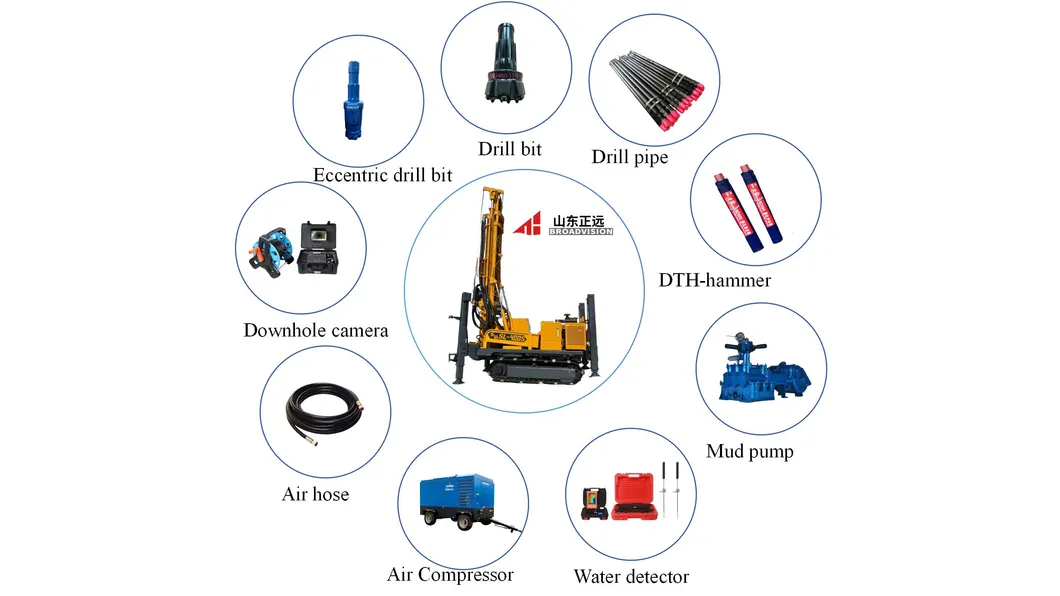

| Optional accessories | Mud pump,Centrifugal pump,Generator,foam pump,Truck |

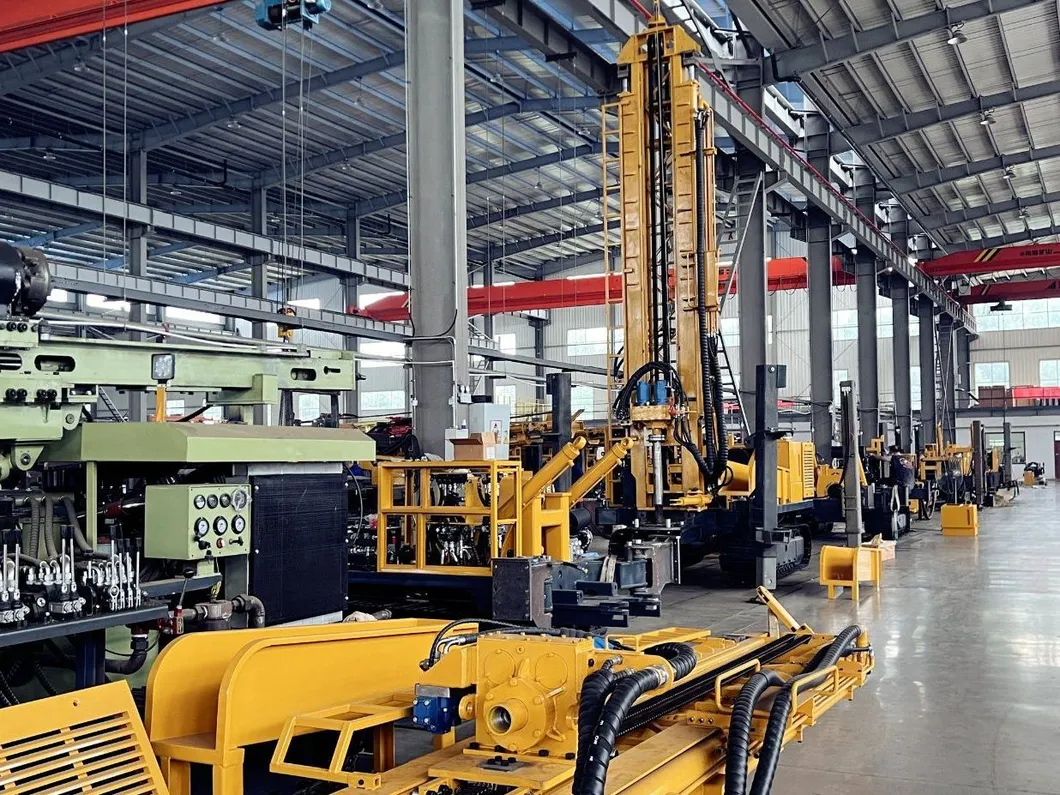

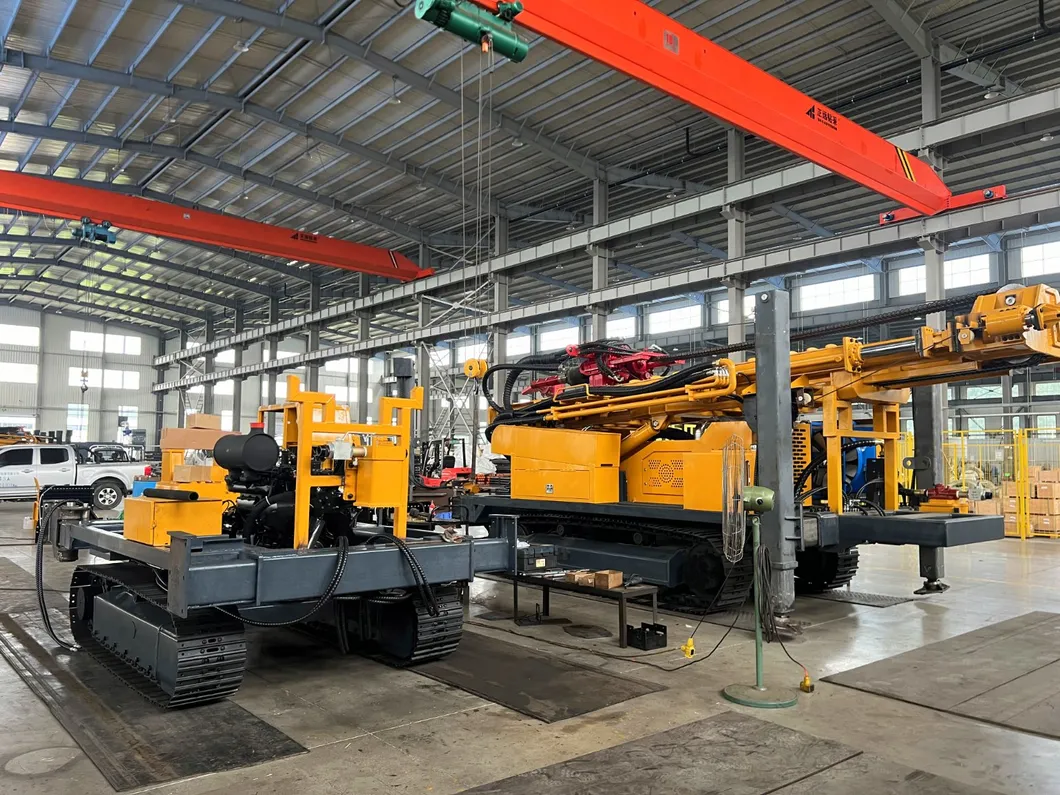

Shandong Zhengyuan Drilling and Production Intelligent Equipment Co., Ltd. was established on June 29, 2019. We have established complete production workshops, research and development workshops, and their supporting facilities, specializing in the scientific research and development, design and manufacturing, and engineering construction of various perforation equipment. We are a water well drilling rig service provider that integrates research and development, manufacturing, and sales. Our company's products are widely used in various fields such as water wells, rescue wells,
dewatering wells, large-diameter blasting holes in mines (replacing rotary drills), exploration sampling, hydropower, highways, coal, oil, natural gas, coalbed methane, municipal engineering, monitoring wells, ground source heat pump holes, anchoring, and non excavation.
The zhengyuan Zhongbang series products are a newly developed series of products by our company aimed at meeting the needs of foreign markets and domestic mid to low end customers. This series of products not only retains the stability of the Zhengyuan drilling and mining series products, but also further reduces production and manufacturing costs, optimizes the supply chain of complete machine spare parts, and is the most cost-effective drilling rig product in China. The products have improved the product line of the Zhengyuan family and enhanced the competitiveness of the Zhengyuan brand in the mid to low end market.
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment;and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
7.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
