| Brand Name: | ZHENGYUAN |
| Model Number: | SC200 |
| MOQ: | 1 set |
| Price: | US$30,000.00-35,000.00 |
| Payment Terms: | tt,L/C,Western Union,MoneyGram,T/T |
| Supply Ability: | 25 sets / month |

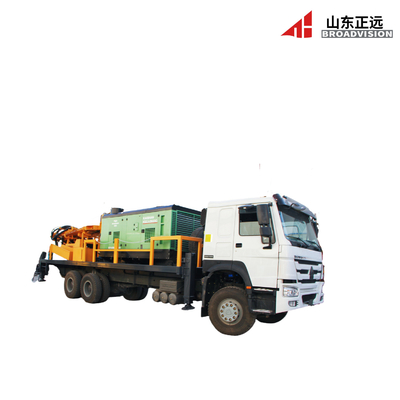

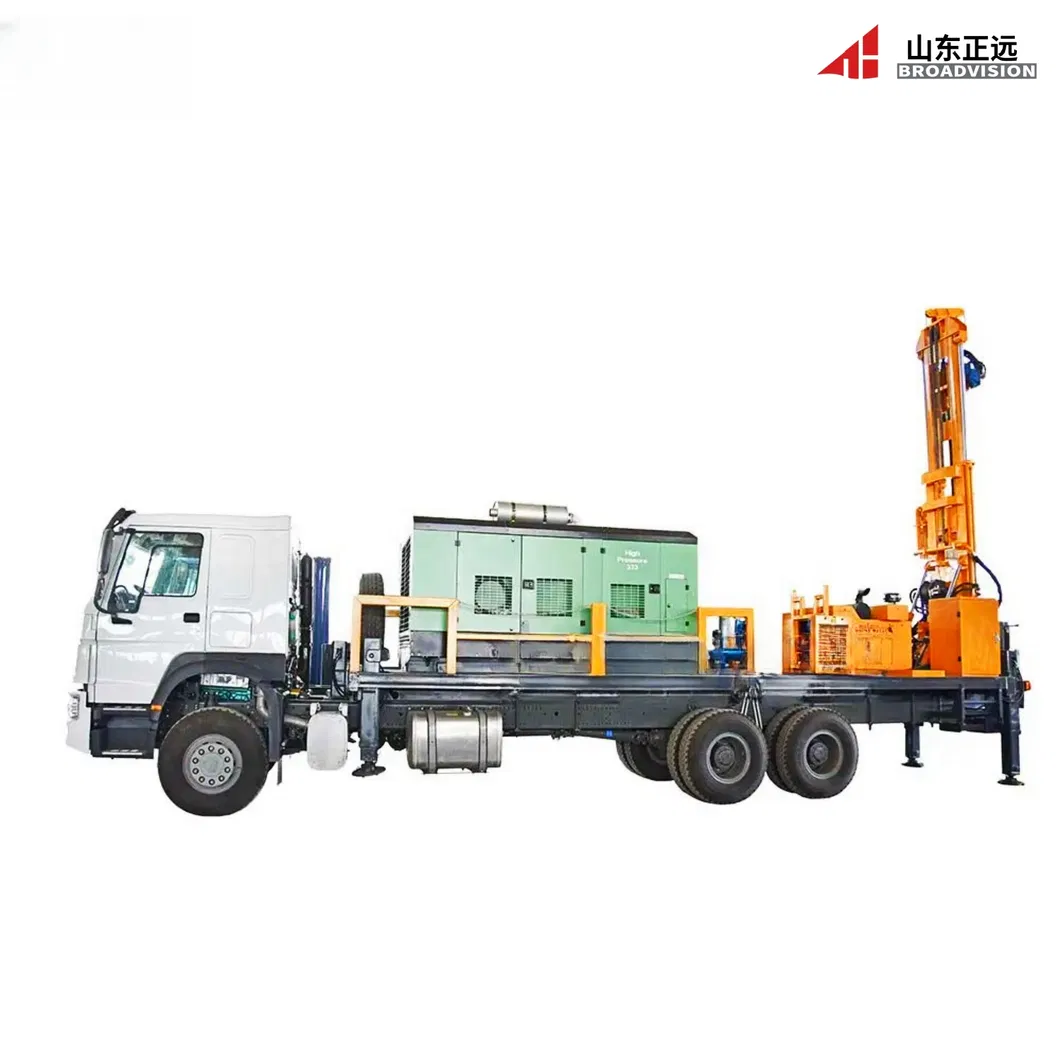

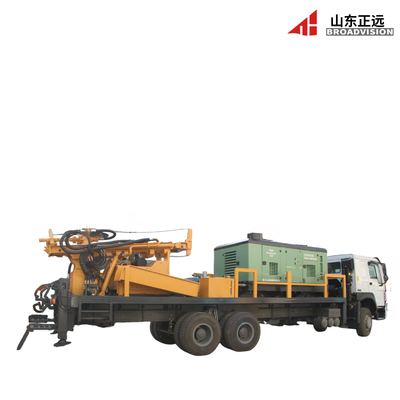

Zhengyuan truck mounted water well drilling rig is a fully hydraulic top drive, efficient and multifunctional mechanical equipment, which can be widely used for drilling water wells, geothermal wells, detection wells, precipitation wells, rescue wells, gas layers, natural gas, oil extraction and other projects. This drilling rig can use compressed air down the hole drilling in various formations, and can also be combined with a mud pump to achieve dual use of water and gas. The hydraulic system and key components of the drilling rig are all from top domestic and foreign brands, significantly reducing its failure rate and extending the working life of the drilling rig. The lifting of the drilling rig tower, the unloading of drill rods, the rotation and feeding, the support legs, and the hoisting are all implemented by hydraulic systems, greatly reducing labor intensity.
The mud pump and air compressor are all on the same car chassis, which is convenient and efficient, and the overall erformance is higher thanother types of drilling rigs.With foam pump.According to customers' requirements, independent diesel engine can be equipped as drilling power.customers' requirements, independent dieseengine can be equipped.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers' positive feedback.
Technical parameters |
Unit |
SC200/ SC200S |
| Max drilling depth | M |
200 |
| Drilling diameter | mm |
105-300 |
| Air pressure | Mpa |
1.2-3.5 |
| Air consumption | m³/min |
16-55 |
| Drill pipe length | m |
3 |
| Drill pipe diameter | mm |
76/89/102/ 114 |
| Axial pressure | T |
3 |
| Lifting force | T |
12 |
| Fast lifting speed | m/min |
31 |
| Fast feeding speed | m/min |
42 |
| Max rotary torque | Nm |
4800 |
| Max rotary speed | r/min |
80/160 |
| Big auxiliary winch lifting force | T |
1.5 |
| Small auxiliary winch lifting force | T |
1.5 |
| Advance the itinerary | m |
3 |
| Drilling efficiency | m/h |
10-35 |
| Moving speed | Km/h |
accompanying vehicle |
| Uphill angle | 21° | |
| Weight of the rig | T |
18 |
| Transport dimensions | m | 9.1×2.55×3.4 |
| Working condition | Unconsolidated formation and stone head | |
| Drilling method | Top drive hydraulic rotary and pushing hammer or mud drilling | |
| Matched DTH hammer | Medium and high air pressure series | |
| Optional accessories | Mud pump,Centrifugal pump,Generator,foam pump | |
Feature
1.The drilling rig can use air DTH Hammer drilling and mud drilling.
2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce
the auxiliary time and enhance the work efficiency.
3.The truck chassis adopts the special crane chassis of different brand truck and the main drive system, the
transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the
chassis.
4.It's a hydraulicrotary drilling rig with directional circulation. It is equipped with mud pump which adopts the
slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
6.It can set up a generator which is convenient to welding or illuminate for work at night.
7.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the
weathering formation.
8.Competitive in price, low cost of maintain.
