| Brand Name: | ZHENGYUAN |
| Model Number: | FSL600 |
| MOQ: | 1 set |
| Price: | $38500-$41900 |
| Payment Terms: | tt,L/C,T/T,Western Union,MoneyGram |
| Supply Ability: | 25 sets / month |

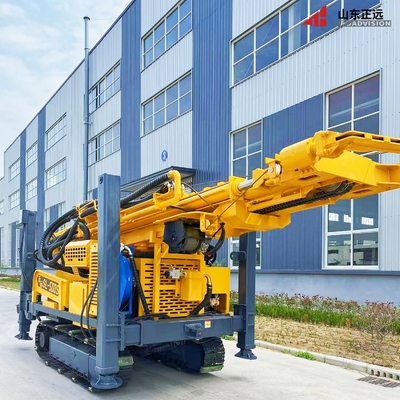

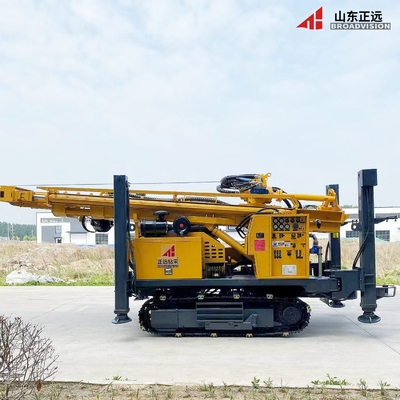

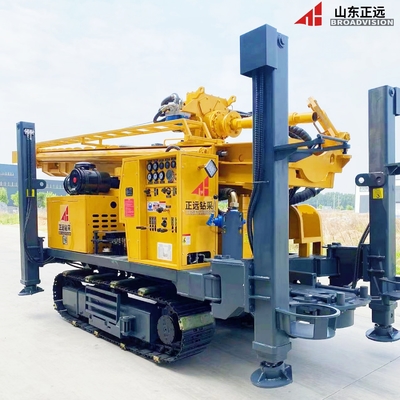

The Crawler Water Well Drilling Rig is a top-of-the-line rotary drilling rig designed for efficient and precise drilling operations. With its powerful capabilities and advanced features, this rig is the perfect choice for water well drilling projects.
One of the standout features of the Crawler Water Well Drilling Rig is its impressive fast feeding speed of 33m/min. This rapid feeding speed allows for quick and efficient drilling, helping you complete your projects in a timely manner.
When it comes to drilling method, the Crawler Water Well Drilling Rig utilizes the rotary drilling method. This proven technique ensures smooth and consistent drilling performance, making it suitable for a wide range of geological conditions.
The drill pipe used in this rig measures 89/102mm*3000mm, providing excellent durability and strength during drilling operations. This high-quality drill pipe is designed to withstand the rigors of demanding drilling tasks, ensuring reliable performance in the field.
Another key feature of the Crawler Water Well Drilling Rig is its impressive max rotary torque of 10000/5000Nm. This high torque capability allows the rig to tackle tough drilling challenges with ease, enabling you to achieve precise and accurate results in various drilling conditions.
Whether you are working on water well drilling projects or other drilling applications, the Crawler Water Well Drilling Rig is a versatile and dependable rig that delivers exceptional performance and efficiency. With its robust construction, advanced features, and powerful capabilities, this rig is designed to meet the needs of demanding drilling projects.
Invest in the Crawler Water Well Drilling Rig today and experience the difference in performance and productivity for your drilling operations. This reliable and powerful rig is the ideal choice for professionals looking for a high-performance drilling solution that delivers outstanding results every time.
>>The drilling rig can use air DTH Hammer drilling and mud drilling.
>> Centralized control console is suitable for each manipulation and control.Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
>> The main drive system, the transfer case gearbox, double-winch unit, mud pump,turntable,drilling tower, feed system are setup on the chassis.
>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay,sand and rock if it is equipped with suitabledrilling bit.
>> The power of drilling rig comes from aYuchai engine,132kw engine drivesthe large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
>> The rotary head,have two gear,rotation speed is 90-180rpm stepless adjustment and the rotary torque is 12000/6000Nm.
>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
>> It can set up a generator which is convenient to welding or illuminate for work at night.
>> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
>> The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
>> The tools winch winch is used for auxiliary lifting and casin.
| Technical parameters | Unit |
SL500S |
| Max drilling depth | M | 500 |
| Drilling diameter | mm | 105-400 |
| Air pressure | Mpa | 1.2-3.5 |
| Air consumption | m³/min | 16-55 |
| Drill pipe length | m | 6 |
| Drill pipe diameter | mm | 89/102 |
| Axial pressure | T | 6 |
| Lifting force | T | 30 |
| Fast lifting speed | m/min | 29 |
| Fast feeding speed | m/min | 48 |
| Max rotary torque | Nm | 11000/ 5500 |
| Max rotary speed | r/min | 75/150 |
| Big auxiliary winch lifting force | T | - |
| Small auxiliary winch lifting force | T | 1.5 |
| Jacks stroke | m | 1.6 |
| Drilling efficiency | m/h | 10-35 |
| Moving speed | Km/h | 3 |
| Uphill angle | 21 ° | |
| Weight of the rig | T | 10.6 |
| Dimension | m | 6.52*1.85*2.51 |
| Engine | / | (Yuchai Stock)110KW |
| Working condition | Unconsolidated formation and stone head | |
| Drilling method | Top drive hydraulic rotary and pushing hammer or mud drilling | |
| Matched DTH hammer | Medium and high air pressure series | |
| Optional accessories | Mud pump,Centrifugal pump,Generator,foam pump | |
