| Brand Name: | ZHENGYUAN |
| Model Number: | SL400S |
| MOQ: | 1 set |
| Price: | $21200-$25600 |
| Payment Terms: | tt,L/C,T/T,Western Union,MoneyGram |
| Supply Ability: | 25 sets / month |
1. Overview

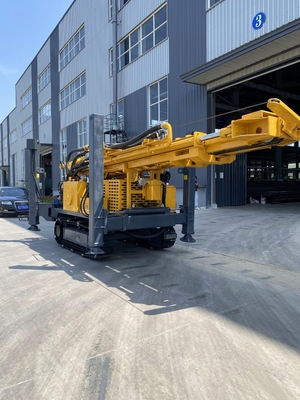

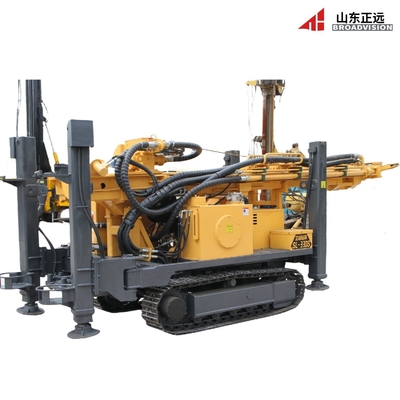

The 400S type water well drilling rig is a light, efficient and multifunctional crawler-type full hydraulic drilling rig. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
ZB400S can drill holes in different strata (rock layer, mud layer, sand layer), and the maximum diameter can reach 350mm.Unique bump design and centralized control operating system are easy to maintain and operate.This machine adopts excavator crawler chassis, which has high off-road performance and can also be installed on trucks, with stronger mobility.
Zhengyuan Serises crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
Zhengyuan Serises deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer,and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
2. Advantages
Versatility: Capable of drilling in diverse terrains (soil, sand, rock).
Efficiency: Modern rigs feature automation and advanced drilling techniques (e.g., rotary, reverse circulation) for faster results.
Mobility: Truck-mounted or portable units enable access to remote areas.
Sustainability: Provides reliable water access in regions with scarce surface water.
Customization: Adaptable to project needs (depth, diameter, power source).
3.Feature description:
1. The engine uses Guangxi Yuchai 91Kw turbocharged engine;
2. Walking device: Equipped with a walking motor and a gearbox, it has a long durability life;
3. Hydraulic oil pump; Parallel transmission design (patent) with separate oil pump units, sufficient power supply and reasonable distribution, specially designed hydraulic system, simple maintenance and low cost;

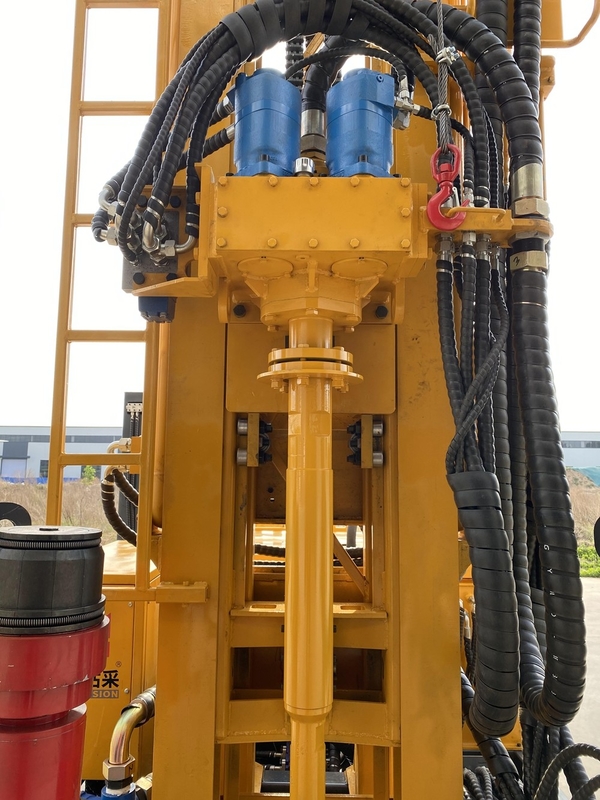

4. Power head device; The gearbox is cast in one, with dual motors providing power, high torque, durability, and low maintenance costs;
5. Drilling rig chassis; Excavator chassis, durable, heavy load-bearing, wide chain plate, minimal damage to hard road surfaces;
6. Enhancing power; Patent designed composite boom with small volume, long stroke, dual oil cylinder lifting, and large lifting tonnage;
7. Each drilling rig's lifting arm is equipped with a limiter to protect the safety of the oil cylinder and ensure work safety;
8. Each hydraulic oil pipe is wrapped with a protective jacket to extend its service life.
4. Types of Drill Rigs
By Drilling Method:
Cable Tool (Percussion): Simple, cost-effective, ideal for shallow wells.
Rotary Drilling: High-speed, suitable for hard rock formations.
Reverse Circulation (RC): Efficient for deep, large-diameter wells.
Auger Drilling: Best for soft soils; uses helical screws to lift cuttings.

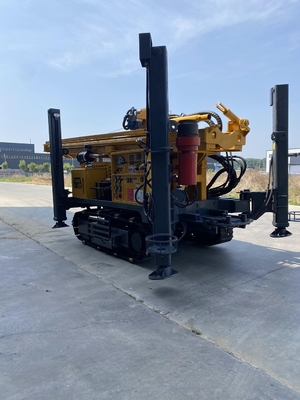

Mature and reliable hydraulic top drive head with high load-bearing capacity and good sealing effect. The adjustable gap telescopic drilling mast can meet the requirements of long casing construction and has high work efficiency. Unique hydraulic matching technology, high system efficiency. Integrated visual pressure control feed system, which can finely adjust drilling pressure according to drilling depth. Configure four hydraulic high support legs to achieve rapid leveling of the drilling rig without the need for lifting. The rotary centering device provides a spacious workspace during operation.

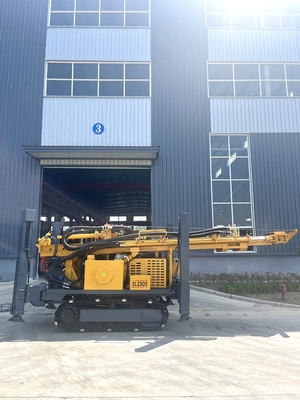

SL300S WTAER DRILL RIG DETAILS
|
Technical parameters |
SL330S |
SL400S |
SL500S |
SL650S |
|
Max drilling depth(M) |
330 |
400 |
500 |
650 |
|
Drilling diameter(mm) |
105-305 |
105-325 |
105-400 |
105-450 |
|
Air pressure(Mpa) |
1.2-3.5 |
1.2-3.5 |
1.2-3.5 |
1.6-6 |
|
Air consumption(mm³/min) |
16-55 |
16-55 |
16-55 |
16-75 |
|
Drill pipe length(m) |
7 |
7 |
7 |
6 |
|
Drill pipe diameter(mm) |
89 |
89/102 |
102 |
89/102 |
|
Axial pressure(T) |
3 |
4 |
6 |
6 |
|
Lifting force(T) |
18 |
22 |
30 |
38 |
|
Fast lifting speed(m/min) |
30 |
29 |
29 |
28 |
|
Fast feeding speed(m/min) |
60 |
56 |
48 |
60 |
|
Max rotary torque(Nm) |
8000/4000 |
8000/4000 |
11000/5500 |
13000/6500 |
|
15000/7500 |
||||
|
Max rotary speed(r/min) |
60/120 |
75/150 |
75/150 |
95/190 |
|
Big secondary winch lifting force(T) |
- |
- |
- |
Can be added 5 tons |
|
Small secondary winch lifting force(T) |
1.5 |
1.5 |
1.5 |
2.5 |
|
Jacks stroke(m) |
1.6 |
1.6 |
1.6 |
1.6 |
|
Drilling efficiency(m/h) |
10-35 |
10-35 |
10-35 |
10-35 |
|
Moving speed(km/h) |
2.5 |
2.5 |
3 |
3 |
|
Uphill angle(Slope) |
21° |
21° |
21° |
21° |
|
Weight of the rig(T) |
8.3 |
9.8 |
10.6 |
13 |
|
Dimension(M) |
6.32*1.7*2.39 |
6.26*1.85*2.43 |
6.52*1.85*2.51 |
6.73*2.1*2.75 |
Brand and Quality: Exploration Experts Crafted with Ingenuity
Our company has been dedicated to the research and production of various exploration equipment for many years, and has won the trust of countless users with its excellent quality and powerful functionality. Every component of it undergoes strict quality testing to ensure stable operation even in harsh environments.
Function and parameters: Exploration capability up to 400 meters deep
This drilling rig can reach a maximum depth of 400 meters, making it easy to search for groundwater resources or conduct geological structure research. Adopting a dual-purpose design for water and gas, it can flexibly switch according to actual needs and adapt to different working environments. The machine is equipped with a high-performance power system, which is powerful and long-lasting, and can maintain efficient operation in various complex terrains, making it the "all powerful king" of geological exploration
WHO ARE WE?
FAQ:
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment;and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
7.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
