| Brand Name: | ZHENGYUAN |
| Model Number: | SL400S |
| MOQ: | 1 set |
| Price: | 26500-33500 USD |
| Payment Terms: | tt |
| Supply Ability: | 25 sets / month |

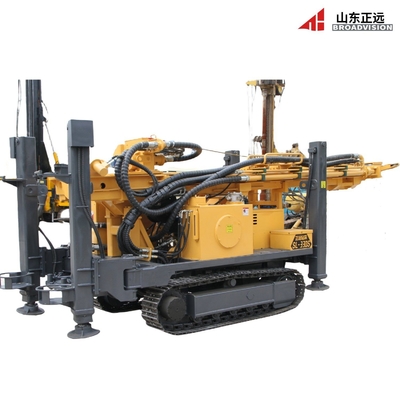

Main characteristics of drilling rig
The Zhengyuan series water well drilling rig is a lightweight, efficient, and multifunctional drilling equipment. It is mainly suitable for drilling water wells, agricultural irrigation wells, and other purposes, especially for water intake projects in mountainous areas and rock formations. This drilling rig adopts a new hydraulic technology, which is equipped with a high torque hydraulic motor for rotation and a large cylinder diameter hydraulic cylinder for propulsion and lifting. It can be used with ordinary alloy drill bits and other drilling tools for rotary drilling; Conventional ball toothed drill bits are used in hard rock formations for impact rotary drilling and high-speed drilling. Paired with air compressors and pneumatic down the hole hammers, in unstable formations such as gravel, the use of casing drilling tools can be used for casing drilling to form holes.
Integrated control panel, compact structure and easy operation.
The dual pump combined rotating system controlled by a single handle provides comfortable operation.
Large amplitude telescopic drilling mast.
Adjustable gap telescopic drilling mast, meeting the needs of large stroke and pipe construction, with short transportation size.
Multiple configurations such as electric motor, centrifugal pump and foam pump can be selected to meet the user's super value needs.
1. Fully hydraulic control, easy and flexible operation. 2. The rotary output torque of the drilling rig is large, ensuring smooth drilling.
3. Special follow-up drilling tools can be optionally selected, with high drilling efficiency and good hole quality.
4. Optional 6m mast.

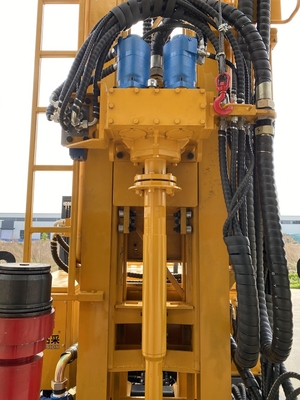

Mature and reliable hydraulic top drive head with high load-bearing capacity and good sealing effect. The adjustable gap telescopic drilling mast can meet the requirements of long casing construction and has high work efficiency. Unique hydraulic matching technology, high system efficiency. Integrated visual pressure control feed system, which can finely adjust drilling pressure according to drilling depth. Configure four hydraulic high support legs to achieve rapid leveling of the drilling rig without the need for lifting. The rotary centering device provides a spacious workspace during operation.

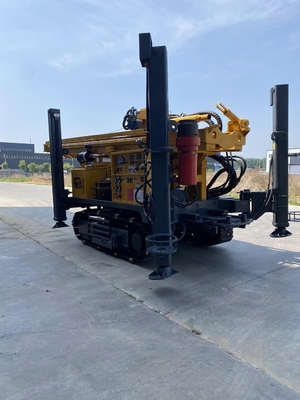

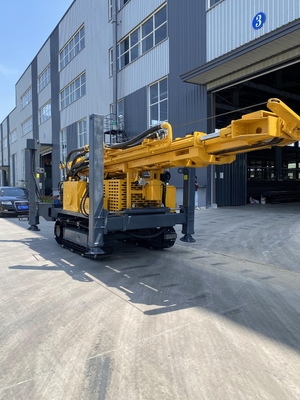

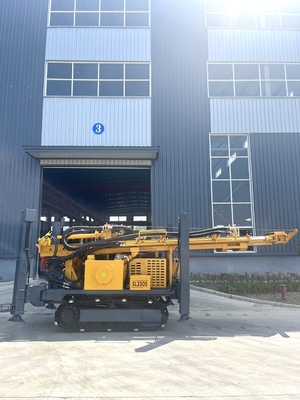

SL300S WTAER DRILL RIG DETAILS
|
Technical parameters |
SL330S |
SL400S |
SL500S |
SL650S |
|
Max drilling depth(M) |
330 |
400 |
500 |
650 |
|
Drilling diameter(mm) |
105-305 |
105-325 |
105-400 |
105-450 |
|
Air pressure(Mpa) |
1.2-3.5 |
1.2-3.5 |
1.2-3.5 |
1.6-6 |
|
Air consumption(mm³/min) |
16-55 |
16-55 |
16-55 |
16-75 |
|
Drill pipe length(m) |
7 |
7 |
7 |
6 |
|
Drill pipe diameter(mm) |
89 |
89/102 |
102 |
89/102 |
|
Axial pressure(T) |
3 |
4 |
6 |
6 |
|
Lifting force(T) |
18 |
22 |
30 |
38 |
|
Fast lifting speed(m/min) |
30 |
29 |
29 |
28 |
|
Fast feeding speed(m/min) |
60 |
56 |
48 |
60 |
|
Max rotary torque(Nm) |
8000/4000 |
8000/4000 |
11000/5500 |
13000/6500 |
|
15000/7500 |
||||
|
Max rotary speed(r/min) |
60/120 |
75/150 |
75/150 |
95/190 |
|
Big secondary winch lifting force(T) |
- |
- |
- |
Can be added 5 tons |
|
Small secondary winch lifting force(T) |
1.5 |
1.5 |
1.5 |
2.5 |
|
Jacks stroke(m) |
1.6 |
1.6 |
1.6 |
1.6 |
|
Drilling efficiency(m/h) |
10-35 |
10-35 |
10-35 |
10-35 |
|
Moving speed(km/h) |
2.5 |
2.5 |
3 |
3 |
|
Uphill angle(Slope) |
21° |
21° |
21° |
21° |
|
Weight of the rig(T) |
8.3 |
9.8 |
10.6 |
13 |
|
Dimension(M) |
6.32*1.7*2.39 |
6.26*1.85*2.43 |
6.52*1.85*2.51 |
6.73*2.1*2.75 |

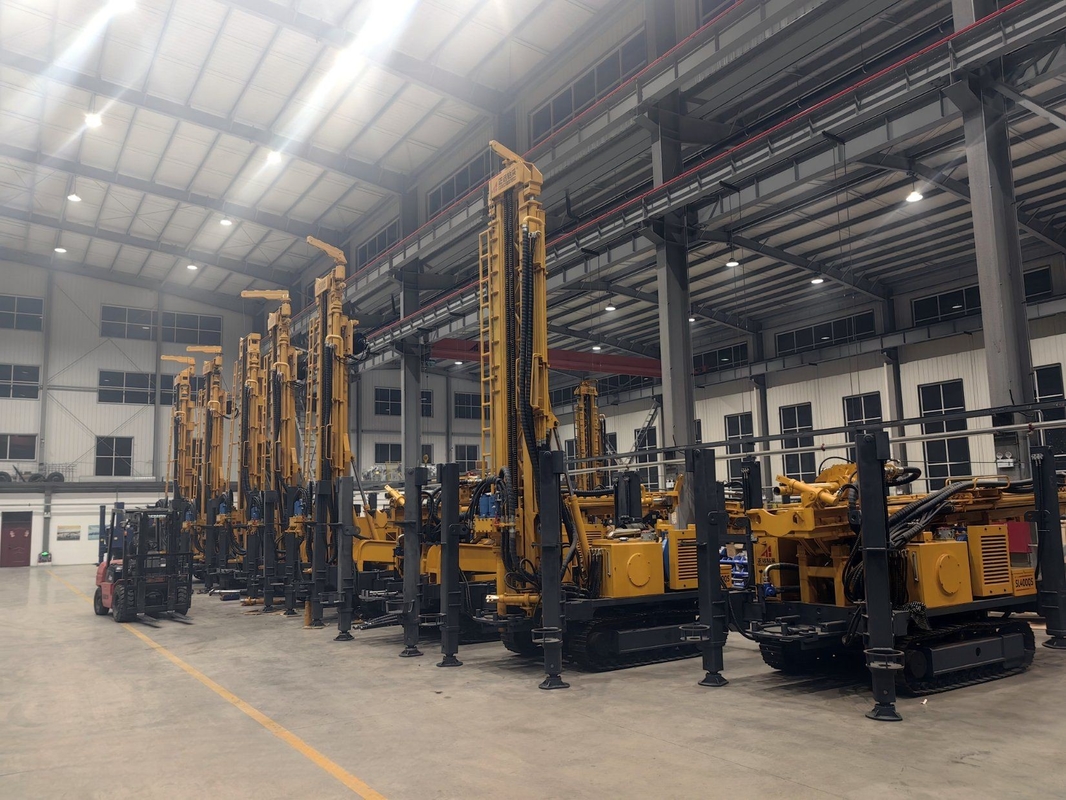

WHO ARE WE?
FAQ:
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment;and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
7.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
