| Brand Name: | ZHENGYUAN |
| Model Number: | SC600S |
| MOQ: | 1 set |
| Price: | 40000usd-60000usd/set |
| Payment Terms: | tt,L/C,T/T,Western Union,MoneyGram |
| Supply Ability: | 25 sets / month |
A Truck-mounted Rotary Drilling Unit is an essential piece of equipment for various drilling operations, offering power, mobility, and versatility. One such powerful unit is the Truck Mounted Drilling Rig, designed to deliver exceptional performance in challenging drilling environments.

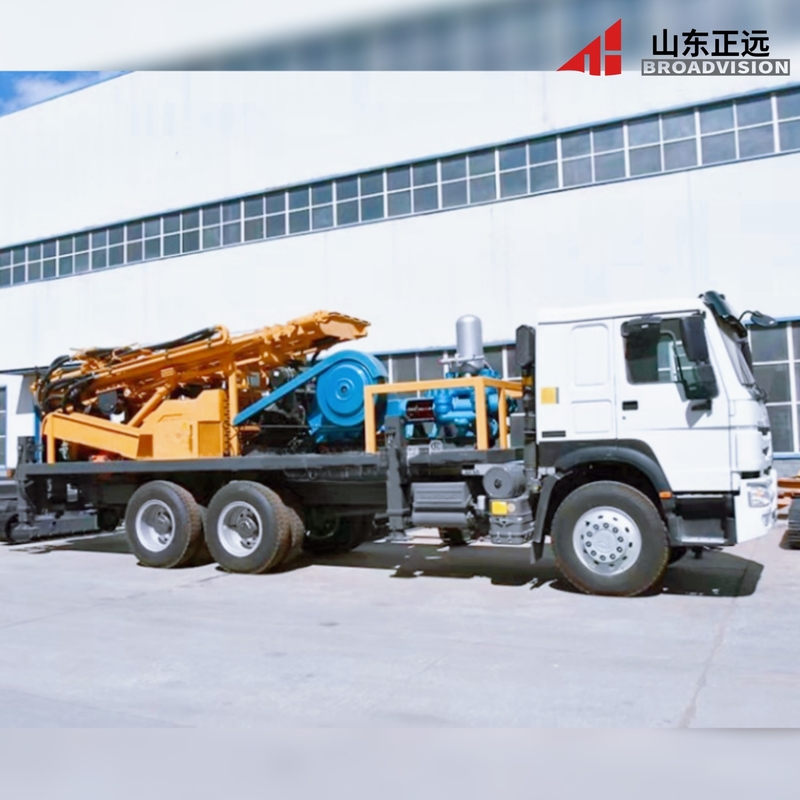

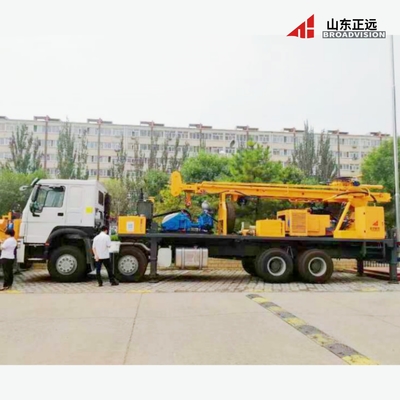

Zhengyuan truck mounted water well drilling rig is a fully hydraulic top drive, efficient and multifunctional mechanical equipment, which can be widely used for drilling water wells, geothermal wells, detection wells, precipitation wells, rescue wells, gas layers, natural gas, oil extraction and other projects. This drilling rig can use compressed air down the hole drilling in various formations, and can also be combined with a mud pump to achieve dual use of water and gas. The hydraulic system and key components of the drilling rig are all from top domestic and foreign brands, significantly reducing its failure rate and extending the working life of the drilling rig. The lifting of the drilling rig tower, the unloading of drill rods, the rotation and feeding, the support legs, and the hoisting are all implemented by hydraulic systems, greatly reducing labor intensity.
The mud pump and air compressor are all on the same car chassis, which is convenient and efficient, and the overall erformance is higher thanother types of drilling rigs.With foam pump.According to customers' requirements, independent diesel engine can be equipped as drilling power.customers' requirements, independent dieseengine can be equipped.
In summary, the Truck Mounted Drilling Rig is a versatile and powerful drilling unit that offers exceptional torque, precise spindle stroke, versatile pulley OD options, efficient rotary drilling method, and reliable diesel engine power. Whether you are working on construction projects, mining operations, geotechnical investigations, or other drilling applications, this rig is designed to meet your drilling needs effectively and efficiently.
1, The hydraulic transmission makes efficient use of the power, resulting in a small power loss and low drilling cost.
2, Unique hydraulic matching system allows a high system efficiency.
3, Integrated visual compression and decompression feed system allows to adjust the drilling pressure depending on the drilling depth.
4, SC600S water well drilling rig has advanced structure, reasonable layout and easy maintenance.
5, The drill rig has reserved some functional interfaces in the hydraulic system, allowing function expansion according to users’ technological requirements.
| Technical parameters | Unit |
SC600/ SC600s |
| Max drilling depth | M |
600 |
| Drilling diameter | mm |
140-450 |
| Air pressure | Mpa |
1.2-3.5 |
| Air consumption | m³/min |
16-55 |
| Drill pipe length | m |
3/6 |
| Drill pipe diameter | mm |
102/114/ 127 |
| Axial pressure | T |
6 |
| Lifting force | T |
37 |
| Fast lifting speed | m/min |
30 |
| Fast feeding speed | m/min |
41 |
| Max rotary torque | Nm |
15000/7500 |
| Max rotary speed | r/min |
70/140 |
| Big auxiliary winch lifting force | T |
3 |
| Small auxiliary winch lifting force | T |
1.5 |
| Advance the itinerary | m |
7 |
| Drilling efficiency | m/h |
10-35 |
| Moving speed | Km/h |
accompanying vehicle |
| Uphill angle | 21° | |
| Weight of the rig | T |
26 |
| Transport dimensions | m | 10×2.48×3.75 |
| Working condition | Unconsolidated formation and stone head | |
| Drilling method | Top drive hydraulic rotary and pushing hammer or mud drilling | |
| Matched DTH hammer | Medium and high air pressure series | |
| Optional accessories | Mud pump,Centrifugal pump,Generator,foam pump | |
Q: What is the brand name of this Truck Mounted Drilling Rig?
A: The brand name of this Truck Mounted Drilling Rig is Shandong Zhengyuan.
Q: What is the model number of this Truck Mounted Drilling Rig?
A: The model number of this Truck Mounted Drilling Rig is SC600S.
Q: Where is this Truck Mounted Drilling Rig manufactured?
A: This Truck Mounted Drilling Rig is manufactured in Shandong Province.
Q: What type of drilling tasks is this rig suitable for?
A: The SC600S Truck Mounted Drilling Rig is suitable for a wide range of drilling tasks, including water well drilling, geotechnical drilling, and exploration drilling.
Q: What are the key features of the Shandong Zhengyuan SC600S Truck Mounted Drilling Rig?
A: Some key features of this rig include high drilling efficiency, strong stability, advanced hydraulic system, and a user-friendly control panel.
