1. Overview
A water well drilling rig is a device specifically designed for drilling and extracting water wells underground. It is a very important mechanical equipment in water conservancy engineering, which can help people obtain groundwater resources and provide important guarantees for agricultural irrigation, industrial production, and domestic water use.
2. Characteristics
Engine: Adopting Yuchai II stage engine, the engine is connected to the hydraulic pump through a high-strength elastic coupling in the middle, providing strong power for the drilling rig
Power head: The power head meets various drilling process construction requirements and has a fast footage speed. Hydraulic driving force head, using high load-bearing bearings, high drilling accuracy
Centralized Console: The design fully considers the convenience and comfort of human-computer interaction, with a simple and clear interface that is easy to use
Engineering track: Fearless of any terrain, efficient operation
Deep penetration, fearless of terrain, multi angle drilling
3.Cycle system maintenance
Mud pump (taking NOV 12-P-160 as an example)
Management of vulnerable parts
✔️ Piston lifespan: 200-300 hours (in hard formation conditions)
✔️ Valve seat sealing ring: Check the compression amount every 72 hours (replace if it is less than 1.5mm)
Washing standards
✔️ Immediately rinse the flow channel with clean water after stopping the pump (to prevent mud solidification)
✔️ Clean scale with 5% oxalic acid solution every week (soaking time ≤ 30 minutes)
|
Device Type |
Maintenance focus |
Testing tools |
Parameter standards |
|
Vibrating screen |
Screen tension maintained at 50-70N |
Tensiometer |
API RP 13C |
|
Desander |
Cyclone cone angle wear>2 ° replacement |
Angle gauge |
ISO 13501 |
|
Centrifuge |
Differential oil temperature ＜ 85 ℃ |
Infrared thermometer |
GB/T 10901 |
5. Rainy/Winter Special Care Plan
|
Season |
Low cost protective measures |
Saving effect |
|
Rainy season |
Self made waterproof cover (PVC cloth+bracket) to prevent circuit short circuit |
Reduce maintenance costs by 2000 yuan/time |
|
Winter |
Diesel with added anticoagulant (ratio 1:1000), replacing -35 # high priced diesel |
Reduce fuel costs by 25% |

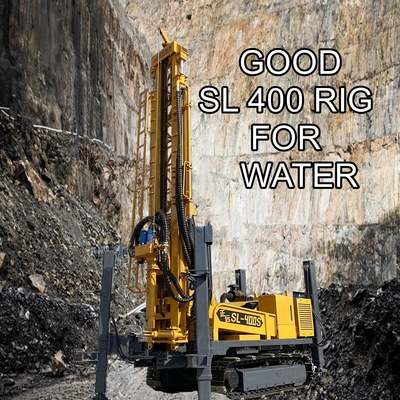

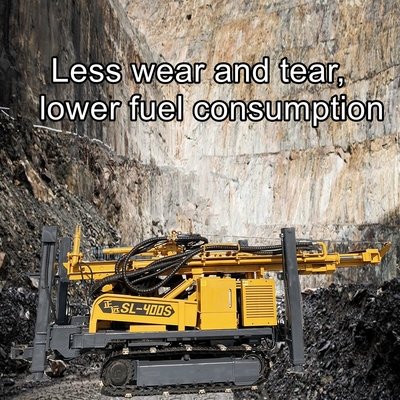

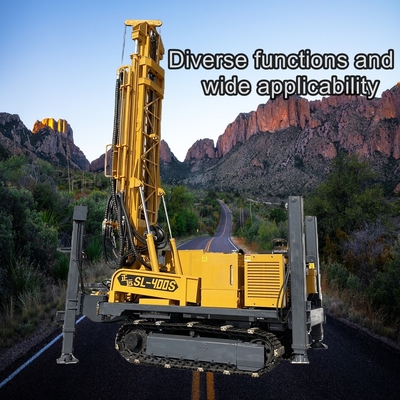

SL400S WTAER DRILL RIG DETAILS
|
Technical parameters |
SL400S |
SL500S |
SL650S |
|
Max drilling depth(M) |
400 |
500 |
650 |
|
Drilling diameter(mm) |
105-325 |
105-400 |
105-450 |
|
Air pressure(Mpa) |
1.2-3.5 |
1.2-3.5 |
1.6-6 |
|
Air consumption(mm³/min) |
16-55 |
16-55 |
16-75 |
|
Drill pipe length(m) |
7 |
7 |
6 |
|
Drill pipe diameter(mm) |
89/102 |
102 |
89/102 |
|
Axial pressure(T) |
4 |
6 |
6 |
|
Lifting force(T) |
22 |
30 |
38 |
|
Fast lifting speed(m/min) |
29 |
29 |
28 |
|
Fast feeding speed(m/min) |
56 |
48 |
60 |
|
Max rotary torque(Nm) |
8000/4000 |
11000/5500 |
13000/6500 |
|
15000/7500 |
|||
|
Max rotary speed(r/min) |
75/150 |
75/150 |
95/190 |
|
Big secondary winch lifting force(T) |
- |
- |
Can be added 5 tons |
|
Small secondary winch lifting force(T) |
1.5 |
1.5 |
2.5 |
|

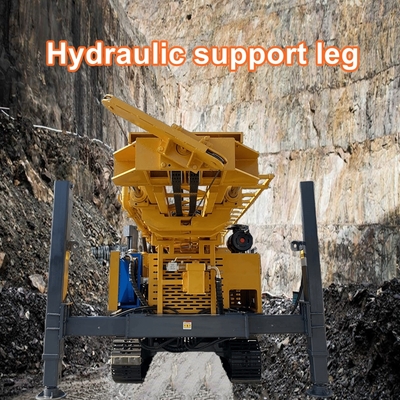

Jacks stroke(m) |
1.6 |
1.6 |
1.6 |
|
Drilling efficiency(m/h) |
10-35 |
10-35 |
10-35 |
|
Moving speed(km/h) |
2.5 |
3 |
3 |
|
Uphill angle(Slope) |
21° |
21° |
21° |
|
Weight of the rig(T) |
9.8 |
10.6 |
13 |
|
Dimension(M) |
6.26*1.85*2.43 |
6.52*1.85*2.51 |
6.73*2.1*2.75 |
