| Brand Name: | ZHENGYUAN |
| Model Number: | FSL500 |
| MOQ: | 1 set |
| Price: | $36800-$43500 |
| Payment Terms: | tt,L/C,T/T,Western Union,MoneyGram |
| Supply Ability: | 25 sets / month |

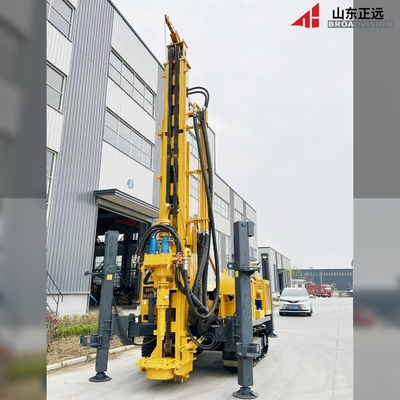

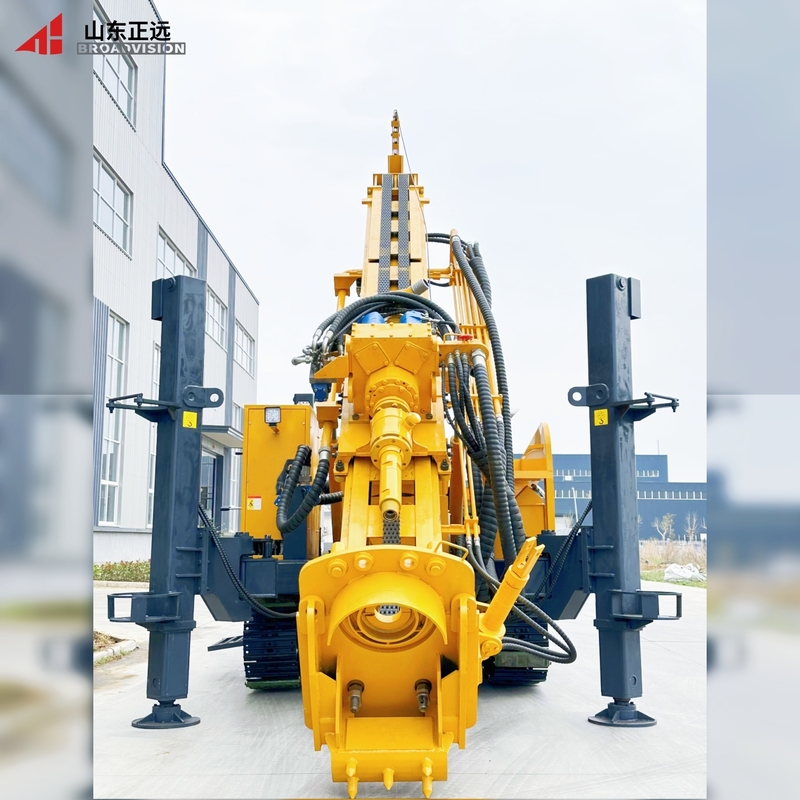

The Geological Drilling Rig Machine is a powerful and efficient solution for your drilling needs, specifically designed for Reverse Circulation (RC) Drilling operations. This high-performance rig is equipped with a hydraulic winch, providing superior control and reliability during operation.
Reverse circulation drilling rig adopts the latest foreign reverse circulation drilling technology. Drilling dust can be effectively collected by dust collector to avoid environmental pollution. Slag can also be collected by cyclone separator for sampling and analysis by geological exploration departments. It is the preferred equipment for geological exploration drilling and other deep hole operations. The drilling rig can use compressed air for reverse circulation down-the-hole drilling and is suitable for various strata. The lifting and lowering of the drilling rig frame, drill frame compensation, drill rod unloading, rotary feeding, outriggers, lifting, walking and other actions are all realized by the hydraulic system, which greatly reduces the labor intensity of workers and improves construction efficiency and project quality.
The Geological Drilling Rig Machine is a Type: RC Drilling Rig that is engineered to deliver exceptional performance and accuracy in a wide range of drilling applications. Whether you are working on mineral exploration, geotechnical investigations, or water well drilling, this rig is versatile enough to meet your needs with precision and efficiency.
In summary, the Geological Drilling Rig Machine with its hydraulic winch, 25T Feed Force, and Diesel Engine power source is a reliable and efficient choice for RC Reverse Circulation Drilling projects. Its durable construction, advanced features, and specialized design make it an indispensable tool for geological exploration and mineral resource assessment.
| Technical parameters | FSL500 |
| Max drilling depth(M) | 500 |
| Engine | Cummins |
| Power(KW) | 132 |
| hydraulic pump | (75-75-24) |
| Swing Motor | Permco 6K490 |
| Drilling diameter(mm) | 105-400 |
| Air pressure(Mpa) | 1.2-3.5 |
| Air consumption(m3/min) | 16-55 |
| Drill pipe length(m) | 3 |
| Drill pipe diameter(mm) | 102/114 |
| Air circulation double layer drill pipe diameter(mm) | 102/114 |
| Axial pressure(T) | 7 |
| Lifting force(T) | 25 |
| Fast lifting speed(m/min) | 23 |
| Fast feeding speed(m/min) | 33 |
| Max rotary torque(Nm) | 10000/5000 |
| Max rotary speed(r/min) | 75/150 |
| Small secondary winch lifting force(T) | 1.5 |
| Jacks stroke(m) | 1.6 |
| Drilling efficiency(m/h) | 10-35 |
| Moving speed(km/h) | 2.5 |
| Uphill angle(Slope) | 21° |
| Weight of the rig(T) | 12 |
| Dimension(M) | 6.32*1.7*2.39 |
| Working condition | Unconsolidated formation and stone head |
| Drilling method | Top drive hydraulic rotary and pushing, hammer or mud drilling |
| Matched DTH hammer | Medium and high air pressure series |
| Optional accessories | Mud pump,Centrifugal pump,Generator,foam pump |
Our Product Technical Support and Services for the Reverse Circulation Drilling rig include:
- On-site installation and commissioning
- Training for operators and maintenance personnel
- Remote technical assistance
- Regular maintenance and inspection services
- Spare parts availability
Q: What is the brand name of this Reverse Circulation Drilling rig?
A: The brand name is Shandong Zhengyuan.
Q: What is the model number of this Reverse Circulation Drilling rig?
A: The model number is FSL500.
Q: Where is this Reverse Circulation Drilling rig manufactured?
A: This rig is manufactured in Shandong Province.
Q: What is the capacity of the Shandong Zhengyuan FSL500 Reverse Circulation Drilling rig?
A: The capacity of this rig is [insert capacity information here].
Q: Does the Shandong Zhengyuan FSL500 Reverse Circulation Drilling rig come with any warranty?
A: [Insert warranty information here].
