| Brand Name: | ZHENGYUAN |
| Model Number: | FSL600 |
| MOQ: | 1 set |
| Price: | $33900-$41500 |
| Payment Terms: | tt,L/C,T/T,Western Union,MoneyGram |
| Supply Ability: | 25 sets / month |

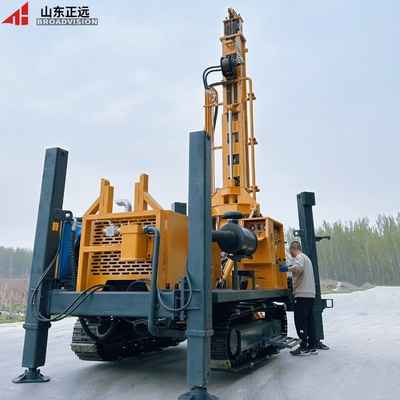

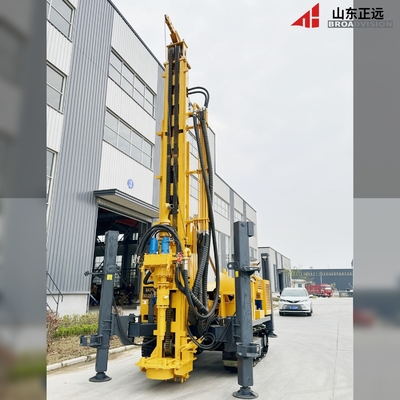

The Reverse Circulation Drilling Rig is a versatile and powerful machine designed for efficient geological drilling operations. With a Feed Force of 12T, this rig is capable of handling tough drilling tasks with ease, making it a reliable choice for various drilling projects.
Powered by a robust engine with a power range of 132kw, the Reverse Circulation Drilling Rig delivers the necessary force and speed to penetrate various types of geological formations. Whether you are exploring mineral deposits, conducting environmental surveys, or performing water well installations, this rig offers the power and performance needed to get the job done effectively.
Reverse circulation multifunctional drilling rig is a new efficient, environmentally friendly, and multifunctional tracked drilling rig.lt adopts the latest RC drilling and mining technology from abroad, and drilling dust can be effectively collected through dust collectors, avoiding environmental pollution. lt can also be collected and discharged through a cyclone separator, which can be used for sampling and analysis work in geological exploration departments.lt is the preferred equipment for geological exploration drilling and other deep holes.

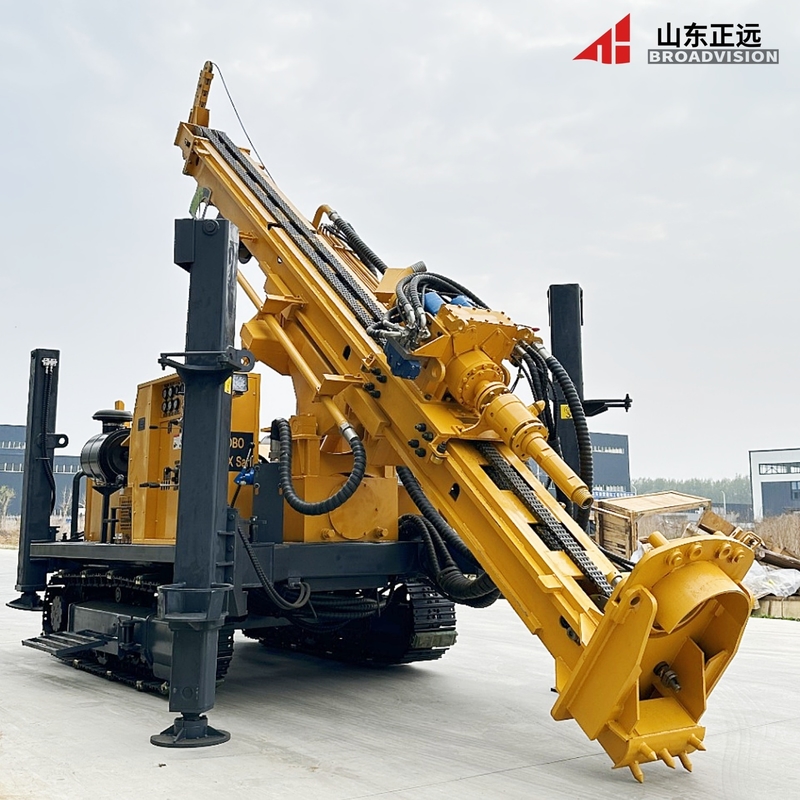

This drilling rig can use compressed air reverse circulation down-hole drilling on various formations. The lifting of the drilling rig frame, compensation of the drilling frame/multi angle drilling unloading of the drill pipe rotation and feeding,support legs ,hoisting,walking and other movements are all achieved by the hydraulic system, greatly reducing labor intensity, improving construction efficiency and engineering quality.
It is a geological exploration drilling, drilling wells, monitoring wells, ground source heat pump air-conditioning and other deep hole of choice for equipment.
1.High Digging Power: Our customizable RC drilling rig boasts an exceptional high digging power, providing an efficient and efficient drilling solution for your projects.
2.Stable Performance: Designed with your needs in mind, this RC drilling rig has a stable performance that can withstand various outdoor conditions, ensuring consistent and reliable operation.
3.Customizable Features: This drilling rig allows for customization, making it versatile and adaptable to various geological conditions and drilling needs, ensuring optimal performance in diverse environments.
4.Provided Video Outgoing-Inspection: We take pride in offering video outgoing-inspection for our products, ensuring that they meet the highest standards of quality and performance before they leave our facility.
5.12 months Warranty: Our products come with a 12 months warranty to provide you with peace of mind when using your new RC drilling rig. If you experience any issues, our customer support team is always available to help you.
| Technical parameters | FSL500 |
| Max drilling depth(M) | 400 |
| Engine | Cummins |
| Power(KW) | 132 |
| hydraulic pump | (75-75-24) |
| Swing Motor | Permco 6K490 |
| Drilling diameter(mm) | 105-325 |
| Air pressure(Mpa) | 1.2-3.5 |
| Air consumption(m3/min) | 16-55 |
| Drill pipe length(m) | 3 |
| Drill pipe diameter(mm) | 102/114 |
| Air circulation double layer drill pipe diameter(mm) | 102/114 |
| Axial pressure(T) | 7 |
| Lifting force(T) | 25 |
| Fast lifting speed(m/min) | 23 |
| Fast feeding speed(m/min) | 33 |
| Max rotary torque(Nm) | 10000/5000 |
| Max rotary speed(r/min) | 75/150 |
| Small secondary winch lifting force(T) | 1.5 |
| Jacks stroke(m) | 1.6 |
| Drilling efficiency(m/h) | 10-35 |
| Moving speed(km/h) | 2.5 |
| Uphill angle(Slope) | 21° |
| Weight of the rig(T) | 12 |
| Dimension(M) | 6.32*1.7*2.39 |
| Working condition | Unconsolidated formation and stone head |
| Drilling method | Top drive hydraulic rotary and pushing, hammer or mud drilling |
| Matched DTH hammer | Medium and high air pressure series |
| Optional accessories | Mud pump,Centrifugal pump,Generator,foam pump |
The Product Technical Support and Services for the Reverse Circulation Drilling rig include:
- On-site installation and commissioning services
- Training for operators and maintenance personnel
- Remote technical support for troubleshooting and maintenance
- Spare parts supply and inventory management
- Periodic maintenance and inspection services
- Upgrades and retrofits for improved performance
Q: What is the brand name of this Reverse Circulation Drilling rig?
A: The brand name of this rig is Shandong Zhengyuan.
Q: What is the model number of this Reverse Circulation Drilling rig?
A: The model number of this rig is FSL600.
Q: Where is this Reverse Circulation Drilling rig manufactured?
A: This rig is manufactured in Shandong Province.
Q: What are the key features of the Shandong Zhengyuan FSL600 Reverse Circulation Drilling rig?
A: Some key features include high drilling efficiency, durable construction, and easy operation.
Q: Is the Shandong Zhengyuan FSL600 Reverse Circulation Drilling rig suitable for large-scale drilling projects?
A: Yes, this rig is designed to handle large-scale drilling projects effectively.
