| Brand Name: | ZHENGYUAN |
| Model Number: | FSL500 |
| MOQ: | 1 set |
| Price: | 57000usd/set |
| Payment Terms: | tt,L/C,T/T,Western Union,MoneyGram |
| Supply Ability: | 40 sets / month |

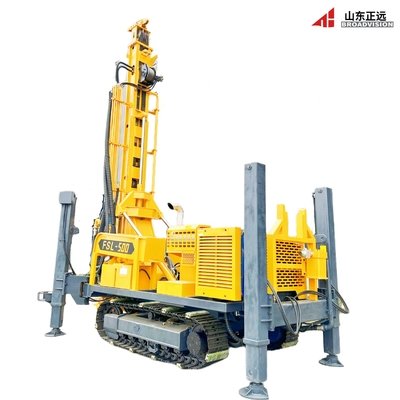

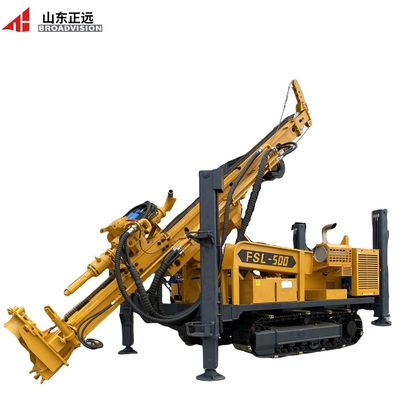

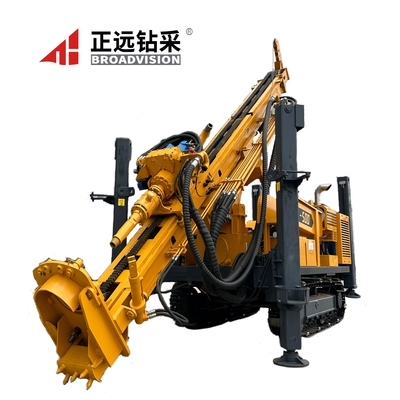

Reverse circulation multifunctional drilling rig is a new efficient, environmentally friendly, and multifunctional tracked drilling rig.lt adopts the latest RC drilling and mining technology from abroad, and drilling dust can be effectively collected through dust collectors, avoiding environmental pollution. lt can also be collected and discharged through a cyclone separator, which can be used for sampling and analysis work in geological exploration departments.lt is the preferred equipment for geological exploration drilling and other deep holes.
This drilling rig can use compressed air reverse circulation down-hole drilling on various formations. The lifting of the drilling rig frame, compensation of the drilling frame/multi angle drilling unloading of the drill pipe rotation and feeding,support legs ,hoisting,walking and other movements are all achieved by the hydraulic system, greatly reducing labor intensity, improving construction efficiency and engineering quality.
It is a geological exploration drilling, drilling wells, monitoring wells, ground source heat pump air-conditioning and other deep hole of choice for equipment.
| Technical parameters | FSL500 |
| Max drilling depth(M) | 400 |
| Engine | Cummins |
| Power(KW) | 132 |
| hydraulic pump | (75-75-24) |
| Swing Motor | Permco 6K490 |
| Drilling diameter(mm) | 105-325 |
| Air pressure(Mpa) | 1.2-3.5 |
| Air consumption(m3/min) | 16-55 |
| Drill pipe length(m) | 3 |
| Drill pipe diameter(mm) | 102/114 |
| Air circulation double layer drill pipe diameter(mm) | 102/114 |
| Axial pressure(T) | 7 |
| Lifting force(T) | 25 |
| Fast lifting speed(m/min) | 23 |
| Fast feeding speed(m/min) | 33 |
| Max rotary torque(Nm) | 10000/5000 |
| Max rotary speed(r/min) | 75/150 |
| Small secondary winch lifting force(T) | 1.5 |
| Jacks stroke(m) | 1.6 |
| Drilling efficiency(m/h) | 10-35 |
| Moving speed(km/h) | 2.5 |
| Uphill angle(Slope) | 21° |
| Weight of the rig(T) | 12 |
| Dimension(M) | 6.32*1.7*2.39 |
| Working condition | Unconsolidated formation and stone head |
| Drilling method | Top drive hydraulic rotary and pushing, hammer or mud drilling |
| Matched DTH hammer | Medium and high air pressure series |
| Optional accessories | Mud pump,Centrifugal pump,Generator,foam pump |
Our Product Technical Support and Services for the Reverse Circulation Drilling rig include:
- Detailed user manuals and guides for proper setup and operation of the rig.
- Remote technical assistance for troubleshooting and resolving any issues that may arise during drilling operations.
- On-site training for operators to ensure safe and efficient use of the rig.
- Regular maintenance and servicing schedules to keep the rig in top working condition.
Q: What is the brand name of this Reverse Circulation Drilling rig?
A: The brand name is Shandong Zhengyuan.
Q: What is the model number of this Reverse Circulation Drilling rig?
A: The model number is FSL500.
Q: Where is this Reverse Circulation Drilling rig manufactured?
A: This rig is manufactured in Shandong Province.
Q: What are the key features of the Shandong Zhengyuan FSL600 Reverse Circulation Drilling rig?
A: The FSL500 model is known for its high performance, durability, and efficiency in drilling operations.
Q: Is the Shandong Zhengyuan FSL600 Reverse Circulation Drilling rig suitable for deep drilling projects?
A: Yes, the FSL500 model is designed to handle deep drilling projects effectively and efficiently.
