| Brand Name: | ZHENGYUAN |
| Model Number: | FSL400 |
| MOQ: | 1 set |
| Price: | $36800-$44200 |
| Payment Terms: | tt,L/C,T/T,Western Union,MoneyGram |
| Supply Ability: | 25 sets / month |

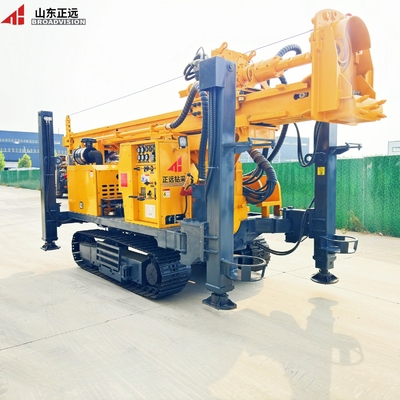

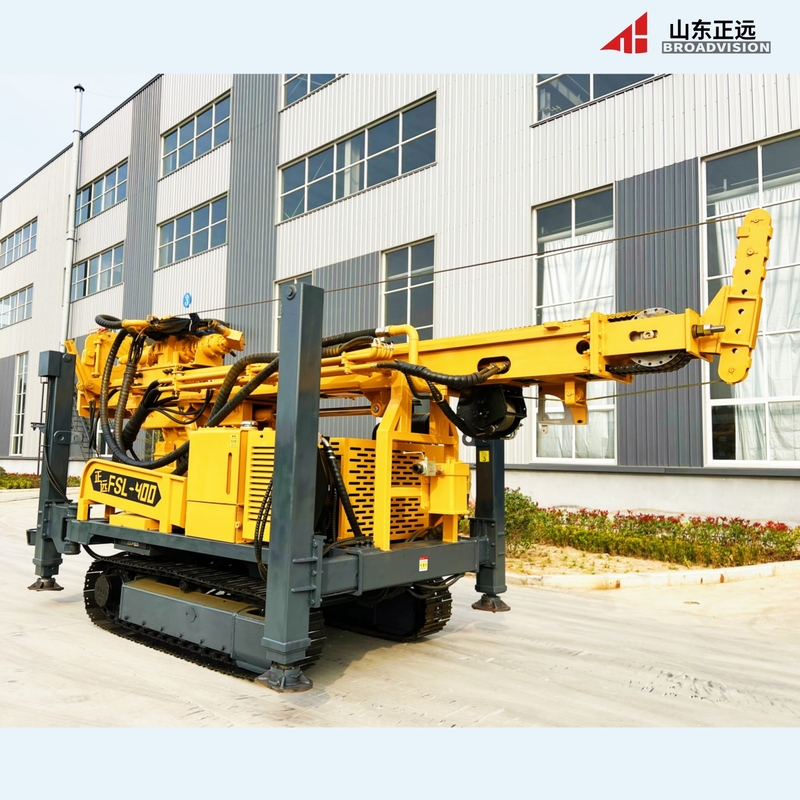

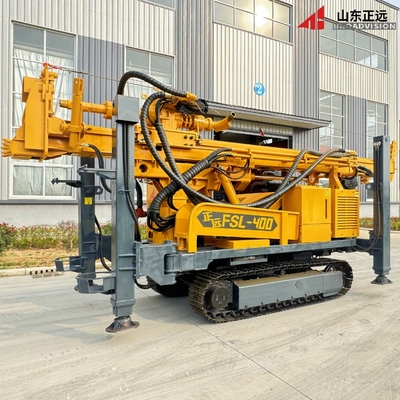

The Reverse Circulation Drilling Rig is a powerful and efficient machine designed for geological drilling applications. With its robust construction and advanced features, this rig is capable of reaching depths of up to 400 meters, making it ideal for various drilling projects in the field of geology.
Equipped with a hydraulic winch, this Geological Drilling Rig Machine provides smooth and precise control over the drilling operation. The winch system enables easy handling of drilling tools and equipment, enhancing overall efficiency and productivity on the job site.
When it comes to drilling diameter, the RC Drilling Rig offers versatility with a range of 105-305mm, allowing flexibility in drilling various hole sizes as required by the project specifications. This adaptability makes the rig suitable for a wide range of geological exploration and mining applications.
With its high drilling depth capacity, powerful feed force, hydraulic winch system, and versatile drilling diameter range, the Reverse Circulation Drilling Rig stands out as a top choice for geological drilling projects. Its efficiency, reliability, and precision make it a valuable asset for geologists, mining engineers, and drilling contractors seeking a dependable rig for their operations.
(1)Reliable Performance Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home and abroad.
(2)High Efficiency With big torque, high power unit allocation and with reasonable structure design and advanced operation method , all these guarantee the drill rig’s high operation and performance efficiency.
(3)Environmental Protection With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation and performance.
(4)Energy Saving Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level. With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.
| Technical parameters | FSL400 |
| Max drilling depth(M) | 400 |
| Power(KW) | 110 |
| Drilling diameter(mm) | 105-305 |
| Air pressure(Mpa) | 1.2-3.5 |
| Air consumption(m3/min) | 16-55 |
| Drill pipe length(m) | 3 |
| Drill pipe diameter(mm) | 89/102 |
| Air circulation double layer drill pipe diameter(mm) | 89/102 |
| Axial pressure(T) | 6 |
| Lifting force(T) | 22 |
| Fast lifting speed(m/min) | 20 |
| Fast feeding speed(m/min) | 32 |
| Max rotary torque(Nm) | 8000/4000 |
| Max rotary speed(r/min) | 75/150 |
| Small secondary winch lifting force(T) | 1.5 |
| Jacks stroke(m) | 1.6 |
| Drilling efficiency(m/h) | 10-35 |
| Moving speed(km/h) | 2.5 |
| Uphill angle(Slope) | 21° |
| Weight of the rig(T) | 11 |
| Dimension(M) | 6.32*1.85*2.8 |
| Working condition | Unconsolidated formation and stone head |
| Drilling method | Top drive hydraulic rotary and pushing, hammer or mud drilling |
| Matched DTH hammer | Medium and high air pressure series |
| Optional accessories | Mud pump,Centrifugal pump,Generator,foam pump |
Our Product Technical Support and Services for the Reverse Circulation Drilling rig include:
- On-site installation and commissioning services
- Training programs for operators and maintenance personnel
- Remote technical assistance and troubleshooting
- Spare parts availability and supply
- Equipment maintenance and repair services
Q: What is the brand name of this Reverse Circulation Drilling rig?
A: The brand name is Shandong Zhengyuan.
Q: What is the model number of this Reverse Circulation Drilling rig?
A: The model number is FSL400.
Q: Where is this Reverse Circulation Drilling rig manufactured?
A: This rig is manufactured in Shandong Province.
Q: What are the key features of the Shandong Zhengyuan FSL400 Reverse Circulation Drilling rig?
A: The key features include high drilling efficiency, durable construction, and ease of operation.
Q: Is the Shandong Zhengyuan FSL400 Reverse Circulation Drilling rig suitable for various drilling conditions?
A: Yes, this rig is designed to perform well in a variety of drilling conditions.
