380V Mobile Borehole Drilling Machine Flexibility Customized For Agricultural

1. Overview

SL500S This drilling rig is equipped with a hydraulic system for lifting the drilling frame, picking up and unloading the drill pipe, rotating and feeding, outriggers, winches, walking, etc. it can be used to work directly with 6-metre drill pipe or 6-metre casing, which greatly reduces the labour intensity and improves the construction efficiency and quality of the project. Each type of drilling rig can be converted into vehicle chassis.

It can drill holes in different strata (rock layers, mud layers, sand layers) with a maximum diameter of up to 500mm. The unique convex block design and centralized control operating system are easy to maintain and operate. This machine adopts excavator track chassis, with high off-road performance, and can also be installed on trucks for stronger maneuverability.

The Zhengyuan series crawler drilling rig can use mud drilling in soft formations and air down the hole hammer to drill various formations in rock drilling. The down the hole hammer is used for rock drilling, and the slag is discharged through air pressure

Principles of Remote Operation Technology
The remote operating system is based on advanced Internet of Things and communication technology, which enables real-time control of various functions of the drilling rig through remote terminals, achieving remote monitoring and operation.
Remote operation distance limit
Remote operation is not limited by geography, as long as the network connection is stable, it can be remotely controlled worldwide, greatly improving the flexibility of operations.
Remote operation security guarantee
The system has multiple built-in security protection mechanisms to ensure data security and device security during remote operations, avoiding illegal access and operations.
Remote operation application scenarios
Suitable for complex geological conditions, remote areas, or high-risk work scenarios, reducing personnel risks and improving work safety through remote operation.

Monthly maintenance tasks
Thoroughly inspect the electrical system and test whether all functions are normal. Check and adjust the hydraulic system pressure to ensure stable operation. Clean the sediment at the bottom of the fuel tank and keep the oil clean.
Component replacement plan
Based on the service life and maintenance records of the components, specify an annual replacement plan. Prioritize the replacement of vulnerable parts and critical components to ensure equipment reliability. Reserve commonly used spare parts to shorten maintenance cycles.
Maintenance record management
Establish electronic or paper maintenance record files, detailing the time, content, replacement parts, and other information of each maintenance. Regularly analyze and maintain data, identify potential issues, and optimize maintenance strategies.
Drilling slodown reasons
Check if the drilling pressure and drilling speed have been verified, and adjust them to the recommended values. Analyze geological changes and adjust drilling strategies. Check the wear of drilling tools and replace damaged parts in a timely manner
Drill bit wear issues
Analyze the compatibility between drill bit types and geological formations, and select suitable drill bits. Check drilling parameters and optimize drilling technology. Regularly check the wear of the drill bit and replace it in a timely manner.
Power system failures
Check if the engine fuel system and ignition system are functioning properly. Check the electrical circuit to ensure there are no short circuits or open circuits. Check battery voltage and maintain sufficient power supply
Control system malfunctions
Check control panel, sensors, actuators and other components, repair or replace faulty parts. Update control software to ensure system compatibility. Conduct system testing to verify functional recovery.
Fluid leakage problems
Locate the leakage point and check if the seals and streets are damaged. Replace aging or damaged seals. Adjust the system pressure to avoid leakage caused by excessive pressure.
Equioment protection measures
Set up equipment protective barriers and warning signs to prevent accidental contact. Regularly inspect equipment safety protection devices to ensure their effectiveness. Avoid working in harsh weather conditions.
Emergency response plans
Develop contingency plans for emergency situations such as fires and mechanical failures. Regularly organize emergency drills to enhance response capabilities. Ensure that the upgrade shutdown button, fire-fighting equipment, etc. are in good condition.

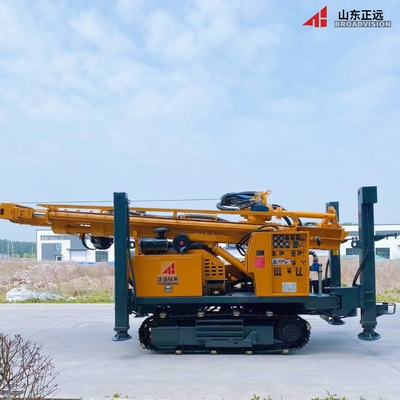

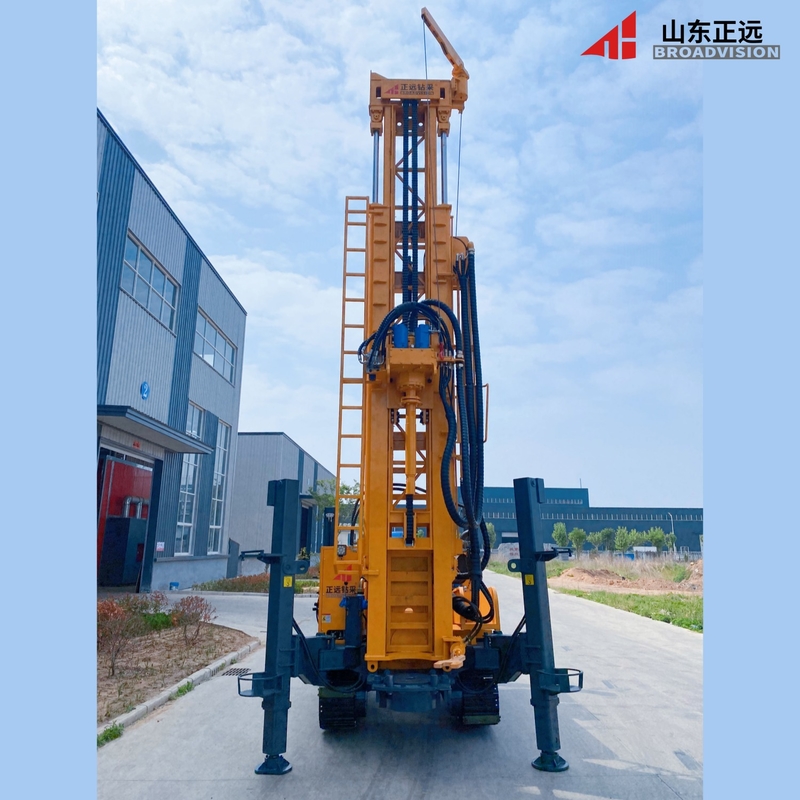

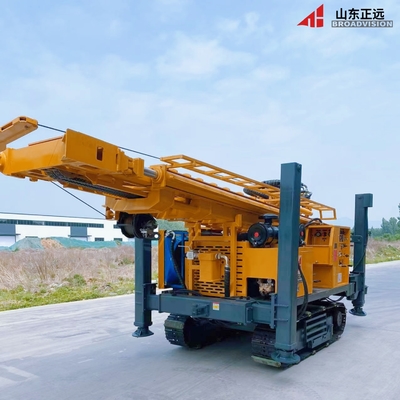

SL500S WTAER DRILL RIG DETAILS

WHO ARE WE?

FAQ:

1. Are you a trading company or a manufacturer?

We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.

2. How can we guarantee quality?

Always a pre-production sample before mass production;always final inspection is done before shipment;and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.

3. How to inspect the goods?

1) Support customers to come to the factory for on-site inspection.

2) Support customers to designate third-party companies to inspect goods.

3) Support video inspection.

4. Do you have after-sales service?

Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.

5. How about quality assurance?

We provide a one-year quality guarantee for the main machine of the machine.

6. How long is your delivery cycle?

1) In the case of stock, we can deliver the machine within 7 days.

2) Under standard production, we can deliver the machine within 15-20 days.

3) In the case of customization, we can deliver the machine within 20-25 days.

7.Can you do OEM for me?

We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
