| Brand Name: | ZHENGYUAN |
| Model Number: | SL400S |
| MOQ: | 1 set |
| Price: | ＄35000-＄45000 |
| Payment Terms: | tt |
| Supply Ability: | 25 sets / month |
1. Overview
SL500S This drilling rig is equipped with a hydraulic system for lifting the drilling frame, picking up and unloading the drill pipe, rotating and feeding, outriggers, winches, walking, etc. it can be used to work directly with 6-metre drill pipe or 6-metre casing, which greatly reduces the labour intensity and improves the construction efficiency and quality of the project. Each type of drilling rig can be converted into vehicle chassis.
It can drill holes in different strata (rock layers, mud layers, sand layers) with a maximum diameter of up to 500mm. The unique convex block design and centralized control operating system are easy to maintain and operate. This machine adopts excavator track chassis, with high off-road performance, and can also be installed on trucks for stronger maneuverability.

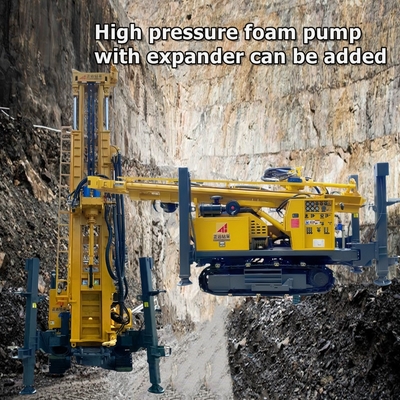

The Zhengyuan series crawler drilling rig can use mud drilling in soft formations and air down the hole hammer to drill various formations in rock drilling. The down the hole hammer is used for rock drilling, and the slag is discharged through air pressure
|
500C Crawler mounted water well drilling rig |
|
|
Max drilling depth |
500m |
|
Drilling diameter |
105-400mm |
|
Drill pipe length |
6m |
|
Air pressure |
1.2-3.5Mpa |
|
Air consumption |
16-55m³/min |
|
Drill pipe diameter |
89/102mm |
|
Axial pressure |
6 t |
|
Lifting force |
30 t |
|
Fast feeding speed |
48m/min |
|
Fast lifting speed |
29m/min |
|
Max rotary torque |
11000/5500Nm |
|
Max rotary speed |
75/150r/min |
|
Small auxilianry winch lifting force |
1.5t |
|
Jacks stroke |
1.6m |
|
Drilling efficiency |
10-35 |
|
Moving speed |
3 km/h |
|
Uphill angle |
21º |
|
Weight |
10.6 t |
|
Dimension |
6.52*1.85*2.51m |
|
Engine |
YUCHAI STOCK 110KW |
Dual hydraulic power head
Drilling speed is faster, more durable, and can be adjusted to high and low speeds.
High-power generator
Provide sufficient power, equipped with larger radiators and air filters, as well as the ability to use an external mud pump

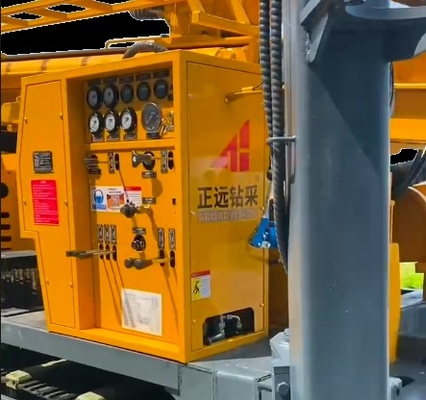

Centralized operation console
The layout is centralized and clear, making it easy to operate.
Principles of Remote Operation Technology
The remote operating system is based on advanced Internet of Things and communication technology, which enables real-time control of various functions of the drilling rig through remote terminals, achieving remote monitoring and operation.
Remote operation distance limit
Remote operation is not limited by geography, as long as the network connection is stable, it can be remotely controlled worldwide, greatly improving the flexibility of operations.
Remote operation security guarantee
The system has multiple built-in security protection mechanisms to ensure data security and device security during remote operations, avoiding illegal access and operations.
Remote operation application scenarios
Suitable for complex geological conditions, remote areas, or high-risk work scenarios, reducing personnel risks and improving work safety through remote operation.

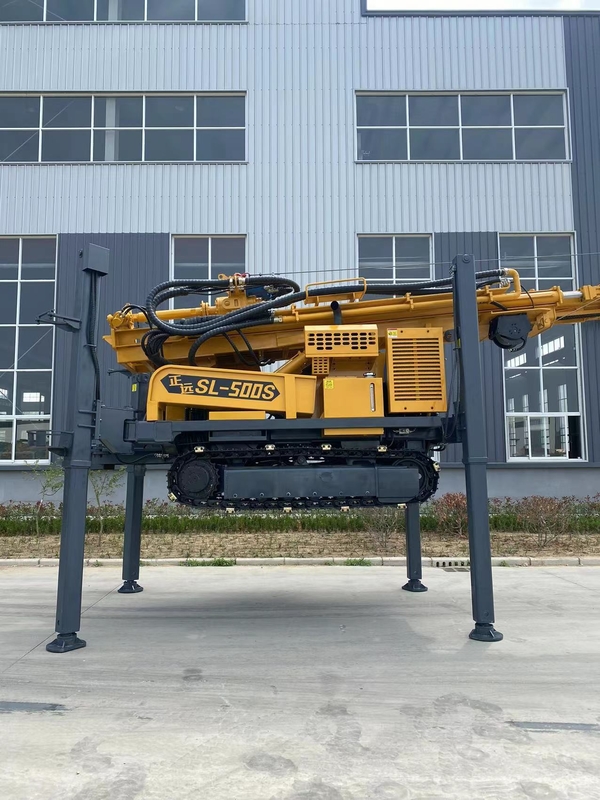

SL500S WTAER DRILL RIG DETAILS
WHO ARE WE?
FAQ:
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment;and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
7.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
