| Brand Name: | ZHENGYUAN |
| Model Number: | SL400S |
| MOQ: | 1 set |
| Price: | ＄35000-＄45000 |
| Payment Terms: | tt |
| Supply Ability: | 25 sets / month |
1. Overview

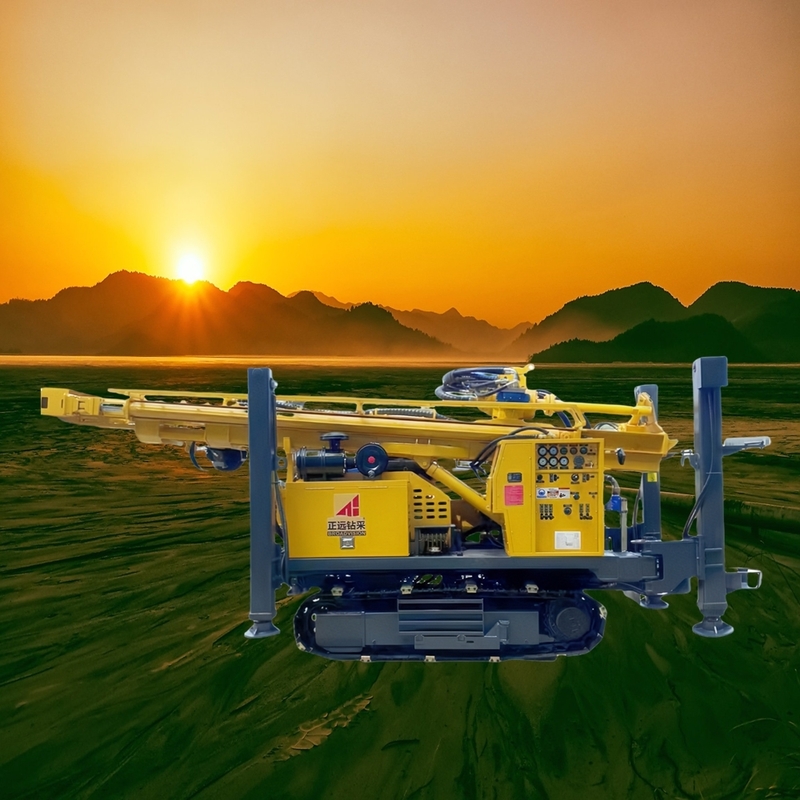

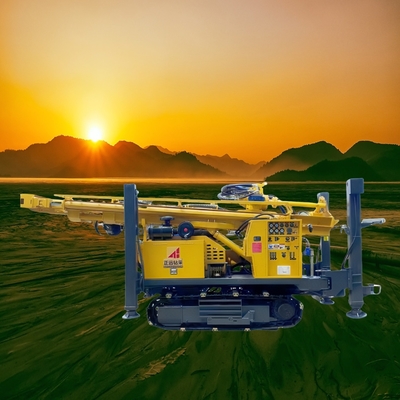

SL500S This drilling rig is equipped with a hydraulic system for lifting the drilling frame, picking up and unloading the drill pipe, rotating and feeding, outriggers, winches, walking, etc. it can be used to work directly with 6-metre drill pipe or 6-metre casing, which greatly reduces the labour intensity and improves the construction efficiency and quality of the project. Each type of drilling rig can be converted into vehicle chassis.

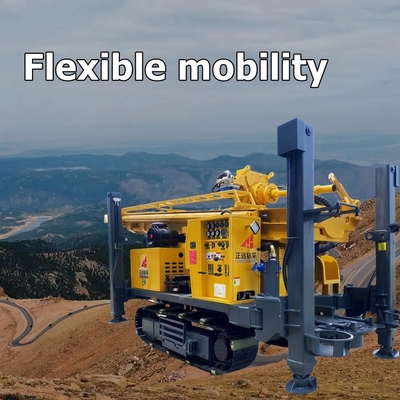

It can drill holes in different strata (rock layers, mud layers, sand layers) with a maximum diameter of up to 500mm. The unique convex block design and centralized control operating system are easy to maintain and operate. This machine adopts excavator track chassis, with high off-road performance, and can also be installed on trucks for stronger maneuverability.
The Zhengyuan series crawler drilling rig can use mud drilling in soft formations and air down the hole hammer to drill various formations in rock drilling. The down the hole hammer is used for rock drilling, and the slag is discharged through air pressure
|
500C Crawler mounted water well drilling rig |
|
|
Max drilling depth |
500m |
|
Drilling diameter |
105-400mm |
|
Drill pipe length |
6m |
|
Air pressure |
1.2-3.5Mpa |
|
Air consumption |
16-55m³/min |
|
Drill pipe diameter |
89/102mm |
|
Axial pressure |
6 t |
|
Lifting force |
30 t |
|
Fast feeding speed |
48m/min |
|
Fast lifting speed |
29m/min |
|
Max rotary torque |
11000/5500Nm |
|
Max rotary speed |
75/150r/min |
|
Small auxilianry winch lifting force |
1.5t |
|
Jacks stroke |
1.6m |
|
Drilling efficiency |
10-35 |
|
Moving speed |
3 km/h |
|
Uphill angle |
21º |
|
Weight |
10.6 t |
|
Dimension |
6.52*1.85*2.51m |
|
Engine |
YUCHAI STOCK 110KW |
Dealing with complex geological formations
By strengthening the drill bit and optimizing the drilling strategy, we can effectively overcome hard rock formations, maintain drilling speed, reduce equipment wear, and extend service life.
Drilling in soft soil formations
For soft soil formations, specially designed drilling tools and parameters are used to reduce drilling resistance, improve drilling efficiency, and avoid hole collapse.
Drilling techniques for sand layers
In sand layer drilling, a special mud formula and circulation system are used to prevent sand layer collapse, maintain wellbore stability, and improve drilling success rate.
Multi layer continuous operation
The drilling rig has excellent geological adaptability and can operate continuously between different geological layers without frequent replacement of drilling tools, improving the continuity and efficiency of operations.
Dual hydraulic power head
Drilling speed is faster, more durable, and can be adjusted to high and low speeds.
High-power generator
Provide sufficient power, equipped with larger radiators and air filters, as well as the ability to use an external mud pump
Centralized operation console
The layout is centralized and clear, making it easy to operate.
Application scenarios of positioning function
Multi well layout positioning: In the multi well layout, the 500m water well drilling rig can accurately and quickly locate each well position, improve construction efficiency, and reduce labor costs.
Directional drilling positioning requirements: Meet the directional drilling positioning requirements under complex geological conditions, achieve precise drilling trajectory control through accurate positioning, and improve drilling success rate.
Advantages of complex terrain positioning: In complex terrain, drilling rigs can overcome terrain limitations, achieve high-precision positioning, and provide strong support for water well construction.
Collaborative positioning with other equipment: It can achieve collaborative positioning with other construction equipment, improve overall construction efficiency, and ensure the coordination and safety of the construction process.

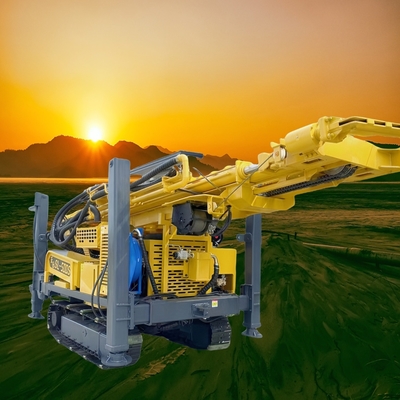

SL500S WTAER DRILL RIG DETAILS
WHO ARE WE?
FAQ:
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment;and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
