| Brand Name: | ZHENGYUAN |
| Model Number: | SL600S |
| MOQ: | 1 set |
| Price: | $45000 |
| Payment Terms: | tt |
| Supply Ability: | 25 sets / month |

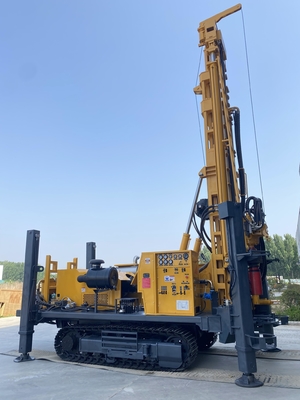

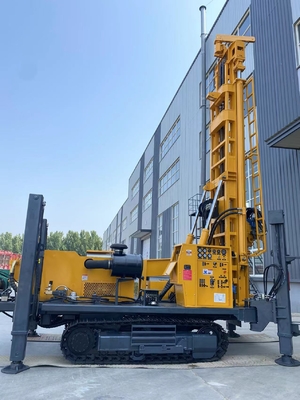

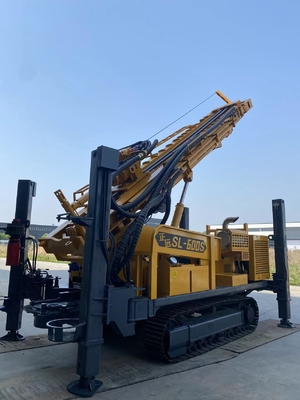

The Crawler Water Well Drilling Rig is a powerful and versatile drilling equipment designed for efficient water well drilling operations. With its robust construction and advanced features, this rig is suitable for various geological conditions and drilling depths.
One of the key features of the Crawler Water Well Drilling Rig is its drill pipe length of 6m, which allows for deep drilling capabilities. The drill pipe diameter of 89/102mm ensures optimal performance and durability during the drilling process. These specifications make the rig well-equipped to handle demanding drilling tasks with precision and efficiency.
Measuring at 6.73*2.1*2.63m, the Crawler Water Well Drilling Rig has a compact and ergonomic design that enables easy maneuverability on different terrains. Whether operating in remote locations or challenging environments, this rig offers reliability and stability to ensure successful drilling operations.
Equipped with a voltage option of 220/380V, the Crawler Water Well Drilling Rig can be adapted to various power supply configurations, making it versatile for different work settings. This flexibility allows for seamless integration into existing power systems, enhancing overall operational efficiency.
The Crawler Water Well Drilling Rig features a maximum rotary speed of 12000/6000N.m, providing high torque for fast and effective drilling performance. This capability enables the rig to penetrate hard rock formations and achieve deep drilling depths with precision and speed, making it an ideal choice for water well drilling projects.
In summary, the Crawler Water Well Drilling Rig is a reliable and efficient drilling solution that offers exceptional performance in various drilling applications. With its durable construction, advanced features, and superior capabilities, this rig is designed to meet the demands of modern drilling operations and deliver reliable results consistently.
|
500C Crawler mounted water well drilling rig |
|
|
Max drilling depth |
500m |
|
Drilling diameter |
105-400mm |
|
Drill pipe length |
6m |
|
Air pressure |
1.2-3.5Mpa |
|
Air consumption |
16-55m³/min |
|
Drill pipe diameter |
89/102mm |
|
Axial pressure |
6 t |
|
Lifting force |
30 t |
|
Fast feeding speed |
48m/min |
|
Fast lifting speed |
29m/min |
|
Max rotary torque |
11000/5500Nm |
|
Max rotary speed |
75/150r/min |
|
Small auxilianry winch lifting force |
1.5t |
|
Jacks stroke |
1.6m |
|
Drilling efficiency |
10-35 |
|
Moving speed |
3 km/h |
|
Uphill angle |
21º |
|
Weight |
10.6 t |
|
Dimension |
6.52*1.85*2.51m |
|
Engine |
YUCHAI STOCK 110KW |
Principles of Positioning System
1. Application of high-precision sensors
The 600m water well drilling rig adopts advanced sensors combining GPS and inertial navigation system, which can capture real-time geographic location information and ensure high-precision positioning even in complex environments. These sensors collect multi-dimensional data on position, velocity, and attitude, providing a foundation for precise construction.
2. Positioning data collection method
The data collection adopts continuous sampling and key node encryption to ensure the integrity and accuracy of the data. The system can automatically filter and optimize data, reduce errors, and improve positioning accuracy.
3. Positioning signal transmission mechanism
Through high-speed wireless communication technology, positioning data can be transmitted in real-time to the control center, enabling remote monitoring and command. Stable signal transmission, strong anti-interference ability, ensuring real-time and reliable data.
4. Analysis of the principle of positioning algorithm
The Kalman filter algorithm is used for data fusion processing, effectively eliminating noise interference and improving positioning accuracy. Algorithms can adaptively adjust parameters to meet the positioning requirements in different construction environments.
Reliability of power system
Engine performance parameters
Choose high-performance, low fuel consumption engines with powerful power output and stable operating performance. The engine meets international emission standards, is environmentally friendly and energy-saving, and reduces operating costs
Power transmission stability
The power system adopts advanced transmission technology and stable transmission components to ensure the smoothness and reliability of the power transmission process. High transmission efficiency, reducing energy loss, and improving drilling efficiency.
Convenient maintenance of the power system
The power system design is easy to maintain and upkeep, with a reasonable layout of components for easy inspection and replacement. Provide detailed maintenance manuals and instructions to reduce maintenance costs and time.
Power system fault warning
The power system is equipped with a fault warning system, which monitors the engine operating status and key parameters in real time, detects and warns potential faults in a timely manner, and improves the safety and reliability of the drilling rig operation.
Product Customization Services for the Crawler Water Well Drilling Rig:
- Brand Name: Shandong Zhengyuan
- Model Number: SL600S
- Place Of Origin: Shandong Province, China
- Minimum Order Quantity: 1 SET
- Price: $45,000
- Packaging Details: ACCORDING TO CUSTOMER
- Delivery Time: 20 DAYS
- Payment Terms: 30% TT FOR DEPOSIT
- Supply Ability: 30 SETS / MONTH
- Dimension: 6.73*2.1*2.63m
- Drill Pipe Length: 6m
- Voltage: 220/380V
- Axial Pressure: 6 T
- Drill Pipe Diameter: 89/102mm
