| Brand Name: | ZHENGYUAN |
| Model Number: | SL600S |
| MOQ: | 1 set |
| Price: | $45000 |
| Payment Terms: | tt |
| Supply Ability: | 25 sets / month |

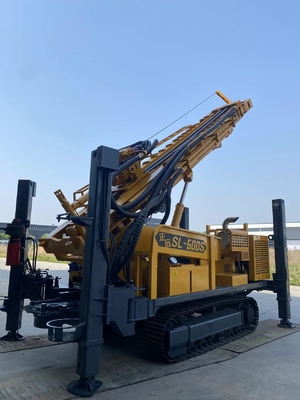

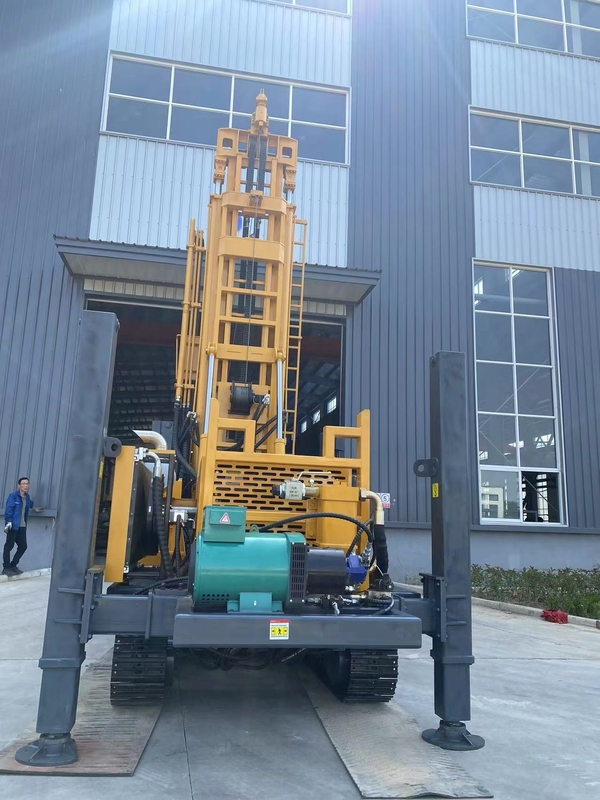

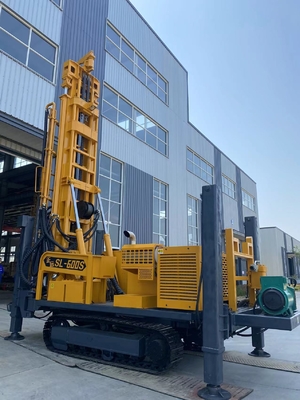

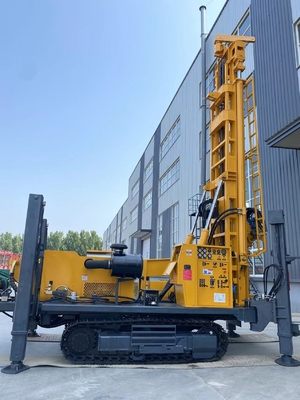

The Crawler Water Well Drilling Rig is a powerful and efficient machine designed for water well drilling operations. With a drill pipe length of 6m, this rig is capable of reaching deep into the ground to access water sources with ease. Whether you are a professional driller or a contractor, this rig offers the reliability and performance needed for successful drilling projects.
One of the standout features of the Crawler Water Well Drilling Rig is its fast lifting speed of 33m/min. This impressive speed allows for quick and efficient drilling, reducing downtime and increasing productivity on the job site. The rig's high-speed capabilities make it ideal for completing water well drilling projects in a timely manner, ensuring that deadlines are met and customers are satisfied.
When it comes to power requirements, the Crawler Water Well Drilling Rig operates on a voltage of 220/380V. This versatile voltage specification ensures compatibility with a wide range of power sources, making it suitable for different job sites and locations. With its adaptable power supply, this rig can be easily integrated into various drilling setups, providing flexibility and convenience for operators.
Designed specifically for water well drilling applications, the Crawler Water Well Drilling Rig is a reliable and efficient solution for meeting water supply needs. Whether you are drilling for residential, commercial, or agricultural purposes, this rig is capable of delivering consistent performance and results. Its robust construction and advanced features make it a valuable asset for any drilling operation.
In terms of performance, the Crawler Water Well Drilling Rig offers an impressive axial pressure of 6 T. This high pressure capability allows the rig to effectively penetrate different types of soil and rock formations, ensuring successful drilling outcomes. With its ability to exert significant pressure, this rig can handle challenging drilling conditions with ease, providing operators with the confidence to tackle demanding projects.
Overall, the Crawler Water Well Drilling Rig is a versatile and reliable machine that is well-suited for a variety of water well drilling applications. Its combination of high-speed lifting, adaptable power supply, and strong axial pressure make it a top choice for professionals in the drilling industry. Whether you are drilling for residential, commercial, or agricultural purposes, this rig delivers the performance and efficiency needed to complete successful water well projects.
|
500C Crawler mounted water well drilling rig |
|
|
Max drilling depth |
500m |
|
Drilling diameter |
105-400mm |
|
Drill pipe length |
6m |
|
Air pressure |
1.2-3.5Mpa |
|
Air consumption |
16-55m³/min |
|
Drill pipe diameter |
89/102mm |
|
Axial pressure |
6 t |
|
Lifting force |
30 t |
|
Fast feeding speed |
48m/min |
|
Fast lifting speed |
29m/min |
|
Max rotary torque |
11000/5500Nm |
|
Max rotary speed |
75/150r/min |
|
Small auxilianry winch lifting force |
1.5t |
|
Jacks stroke |
1.6m |
|
Drilling efficiency |
10-35 |
|
Moving speed |
3 km/h |
|
Uphill angle |
21º |
|
Weight |
10.6 t |
|
Dimension |
6.52*1.85*2.51m |
|
Engine |
YUCHAI STOCK 110KW |
Horizontal positioning accuracy of wellhead
The horizontal positioning accuracy of the 500m water well drilling rig reaches centimeter level. Through high-precision sensors and algorithm optimization, the accurate and precise position of the wellhead is ensured, laying the foundation for subsequent drilling operations.
Horizontal deviation control
The system can monitor horizontal deviation in real time, and by intelligently adjusting the drilling trajectory, control the deviation within a very small range, improving construction efficiency and safety.
Horizontal positioning calibration method
The system can monitor horizontal deviation in real time, and by intelligently adjusting the drilling trajectory, control the deviation within a very small range, improving construction efficiency and safety.
Horizontal positioning stability
The system has strong stability and can maintain horizontal positioning accuracy under various complex geological conditions, providing reliable guarantee for construction.
Hydraulic system stability
Quality assurance of hydraulic components
The hydraulic system uses high-quality hydraulic components that have undergone strict screening and testing to ensure the performance and quality of the components. Components have high reliability and long lifespan, reducing failure rates and improving system stability.
Rationality of hydraulic circuit design
The hydraulic circuit design is reasonable and meets various working conditions during the drilling process. The circuit layout is concise and clear, reducing pressure loss and energy consumption, and improving system efficiency.
Hydraulic system pressure control
The hydraulic system is equipped with a precise pressure control system, which monitors and adjusts the system pressure in real time to ensure stable and reliable pressure during drilling. Avoid the impact of pressure fluctuations on drilling efficiency and stability.
Hydraulic system leakage prevention
Adopting advanced sealing technology and leak proof design, effectively preventing hydraulic system leakage. Regularly inspect and maintain sealing components to ensure the sealing performance and stability of the system.
Product Customization Services for the Crawler Water Well Drilling Rig:
Crawler Water Well Drilling Rig
Brand Name: Shandong Zhengyuan
Model Number: SL600S
Place Of Origin: Shandong Province, China
Minimum Order Quantity: 1 SET
Price: $45,000
Packaging Details: ACCORDING TO CUSTOMER
Delivery Time: 20 DAYS
Payment Terms: 30%TT FOR DEPOSIT
Supply Ability: 30 SETS / MONTH
Fast Lifting Speed: 33m/min
Usage: Water Well Drilling
Drill Pipe Length: 6m
Drill Pipe Diameter: 89/102mm
Dimension: 6.73*2.1*2.63m
