| Brand Name: | Zhengyuan Drilling & Production |
| Model Number: | SL500S |
| MOQ: | 1set |
| Price: | US$45000/set |
| Payment Terms: | ,T/T,D/P,D/A,L/C |
| Supply Ability: | 40 units per month |

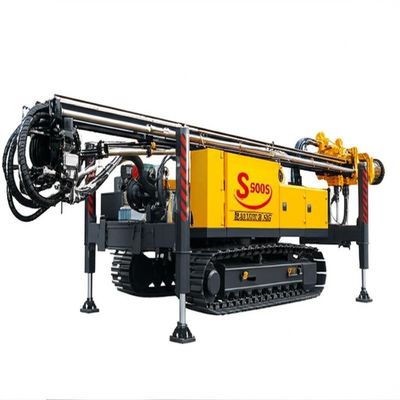

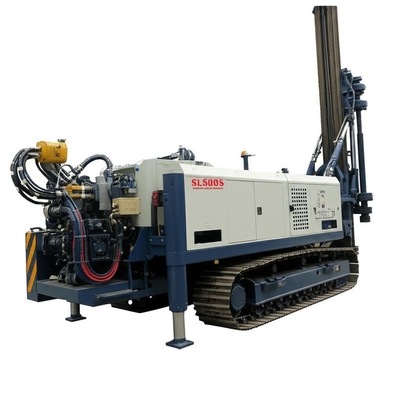

SL500S Crawler Water Well Drilling Rig - High Power & Multifunctional
Applications
The Zhengyuan SL500S is a fully hydraulic, top drive drilling rig designed for diverse drilling applications including water wells, monitoring wells, geothermal wells, and oil/gas extraction projects. It operates efficiently in various geological formations, including high-temperature and high-altitude environments, with excellent performance in rock formations (Proctor hardness f=4-20).
Key Features
Key Configurations
Technical Specifications
| Model | SL500S | SL750S | SL400S |
|---|---|---|---|
| Weight (T) | 10.6 | 14 | 9.8 |
| Dimensions (M) | 6.52×1.85×2.51 | 6.64×2.25×2.67 | 6.26×1.85×2.43 |
| Max Drilling Depth (M) | 500 | 750 | 400 |
| Drilling Diameter (mm) | 105-400 | 105-450 | 105-325 |
| Lifting Force (T) | 30 | 40 | 22 |
| Max Rotary Torque (Nm) | 11000/5500 | 13000/6500 or 15000/7500 | 8000/4000 |
| Max Rotary Speed (r/min) | 75/150 | 95/190 | 75/150 |
| Jack Stroke (m) | 1.6 | 1.6 | 1.6 |
| Uphill Angle | 21° | 21° | 21° |
Why Choose Us?
Choose our equipment because it leads the industry in core performance, can enhance efficiency, reduce energy consumption, and has a lower total cost of ownership throughout its lifecycle. We offer fast service and flexible customization to meet your specific requirements. We also have a solid reputation and after-sales guarantee to ensure that you can use it with peace of mind, efficiency, and cost-effectiveness.
FAQ
Q: What's the lead time for orders?
A: The delivery time for the standard model is 10 to 20 days; for the customized model, it takes 20 to 35 days.
Q:Do you have after-sales service?
A: Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
Q:May I request to customize the size of the product?
A: Absolutely! We offer tailored attachments.
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturing enterprise. Our factory mainly produces products such as crawler-type well drilling machines and vehicle-mounted well drilling machines. These products have been exported to hundreds of countries around the world and enjoy a high reputation there.
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
Q:How is the quality of your machine?
A:Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
