SL400S Crawler Water Well Drilling Rig 400m Depth 8000Nm Torque

Brand Name: Zhengyuan Drilling & Production
Model Number: SL400S
MOQ: 1 set
Price: US$39000/set
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 40
Detail Information
Product Description
Detail Information
Place of Origin:
ShanDong
Certification:
iSO,SGS CE
Packaging Details:
6.26*1.85*2.43M
Supply Ability:
40
Highlight:

SL400S crawler water well drilling rig

,

400m depth water well drilling rig

,

8000Nm torque crawler drilling rig

Product Description

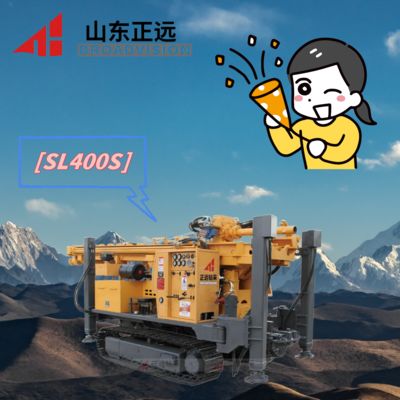

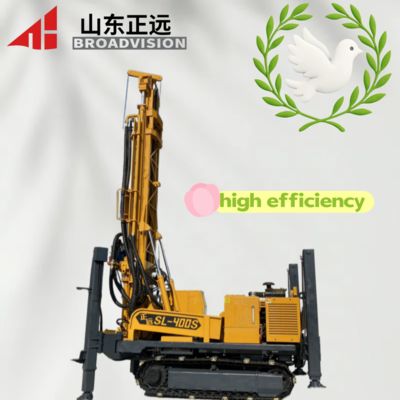

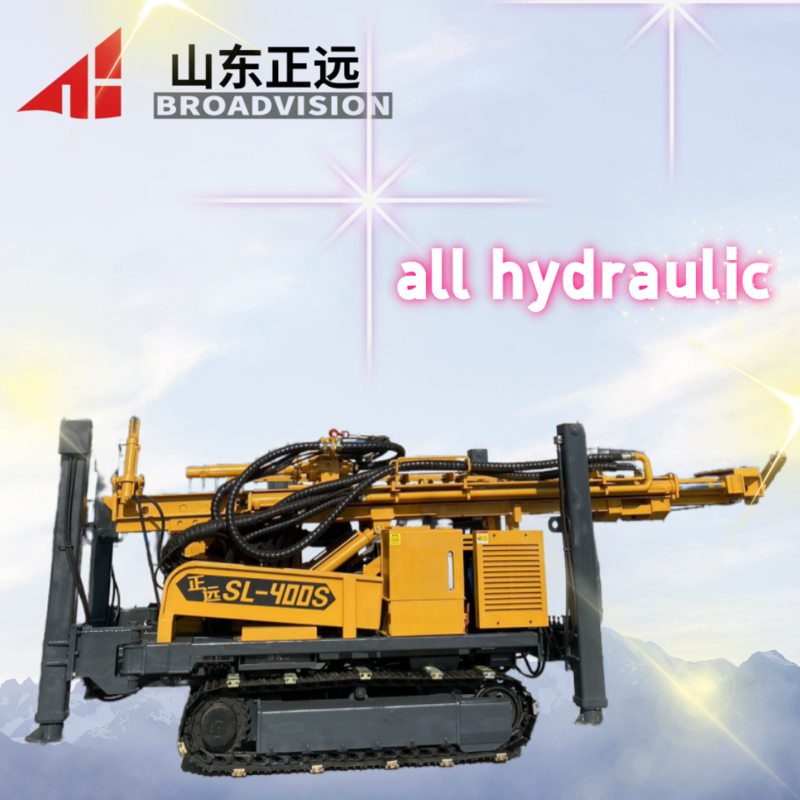

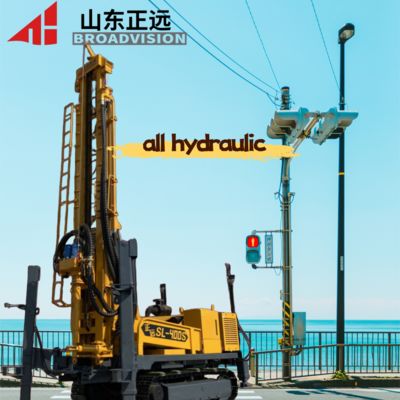

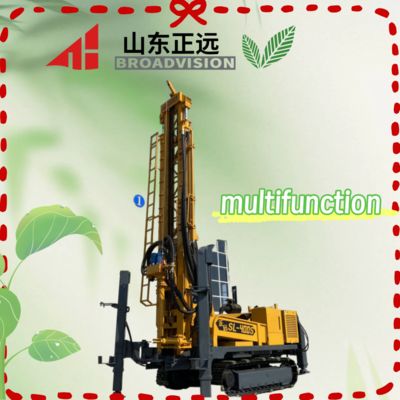

SL400S Crawler-type Multi-functional Water Well Drilling Rig
The SL400S is a high-efficiency, multi-functional crawler-type water well drilling rig designed for superior performance across various drilling applications.
About Zhengyuan Drilling
Shandong Zhengyuan Drilling and Production Intelligent Equipment Co., Ltd. was founded in 2005 and expanded in 2019. Located in Feicheng High-tech Zone, Tai'an City, Shandong Province, the company specializes in research, development, design, and manufacturing of perforation equipment.
Our products feature high operational efficiency, low construction costs, reliable performance, and easy operation. They serve diverse applications including water wells, rescue wells, mining, exploration, hydropower, oil/gas, and municipal engineering.
SL400S Crawler Water Well Drilling Rig 400m Depth 8000Nm Torque 0
Technical Specifications
Max drilling depth 400m Max rotary torque 8000/4000Nm
Drilling diameter 105-325mm Max rotary speed 75/150r/min
Air pressure 1.2-3.5Mpa Small auxiliary winch lifting force 1.5T
Air consumption 16-55m³/min Drilling efficiency 10-35
Drill pipe length 6m Moving speed 2.5Km/h
Drill pipe diameter 89/102mm Uphill angle 21°
Axial pressure 4T Weight of the rig 9.8T
Lifting force 22T Dimension 6.26*1.85*2.43m
Certifications
SL400S Crawler Water Well Drilling Rig 400m Depth 8000Nm Torque 1 SL400S Crawler Water Well Drilling Rig 400m Depth 8000Nm Torque 2
Key Features
  • Powerful and stable: Equipped with Yuchai's 92-kilowatt six-cylinder direct injection engine and Kaspas 55215 hydraulic oil pumps for reliable power output.
  • Diverse drilling techniques: Supports submerged drilling, air reverse circulation, gas lift reverse circulation, cutting drilling, tricone drilling, and more.
  • High operational efficiency: Patented anti-shock design technology, complete centering/feeding mechanisms, and fast drilling speed with minimal auxiliary time.
After Sales Service
We provide comprehensive after-sales support to ensure worry-free operation:
  • Standard Warranty: 12 months
  • Global Support: 24/7 technical assistance and spare parts supply
  • Training: On-site or remote operation/maintenance training
Packaging & Shipping
Packaging Shipping Delivery
Custom configurations available Land and sea transportation 10-15 days
Frequently Asked Questions
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q: Are you original manufacturer?
A: Yes, we are the original manufacturer with complete product series.
Q: How long will the delivery time take?
A: Normally 10-15 days for production, with immediate delivery of regular machines in 20 days.
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
Q: Do you test all your goods before delivery?
A: Yes, we perform 100% testing before delivery with inspection reports for each machine.
Tags:

Down The Hole Drilling Rig

Down The Hole Drilling Machine

DTH Water Well Drilling Rig

Related Products

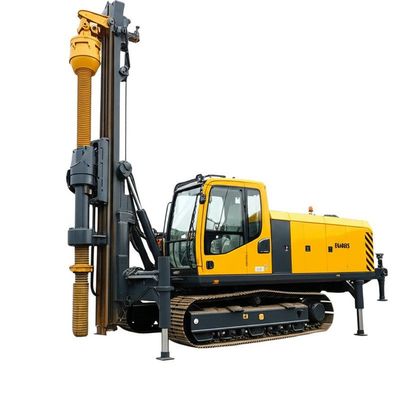

Compressed Air Crawler Water Well Drilling Rig Powerful Diesel Down The Hole Drilling Rig Video
