| Brand Name: | Shandong Zhengyuan |
| Model Number: | FSL600 |
The Reverse Circulation Drilling Rig is a highly efficient and versatile Geological Drilling Rig Machine designed to meet the demanding requirements of modern geological exploration and mining operations. Engineered with precision and robustness, this drilling rig combines advanced technology with practical features to deliver superior performance in a compact and manageable form factor. Its exceptional design makes it an indispensable tool for professionals engaged in geological surveys, mineral exploration, and resource development projects.
One of the standout features of this Geological Drilling Rig Machine is its small auxiliary winch with a lifting force capacity of 2.5 tons. This winch enhances operational flexibility by providing additional lifting power for handling drill pipes, casing, and other equipment, thereby improving overall work efficiency and safety on site. The auxiliary winch’s capacity ensures that even heavy components can be managed with ease, reducing manual labor and minimizing downtime during drilling operations.
The rig is equipped to handle drill pipes that are 3 meters in length, a standard size that offers a good balance between ease of handling and drilling depth capability. The drill pipes used with this rig have a diameter of 102/114 mm, making them suitable for a wide range of geological conditions and drilling requirements. This diameter range enables the rig to perform precise and efficient reverse circulation drilling, which is essential for collecting uncontaminated samples from various depths, thereby providing accurate geological data for analysis.
Compact yet powerful, this Geological Drilling Rig Machine measures 7 meters in length, 2.1 meters in width, and 2.9 meters in height. These dimensions allow for easy transportation and deployment in remote or restricted-access locations, making it ideal for field operations where mobility and quick setup are critical. Despite its relatively small footprint, the rig’s design does not compromise on structural integrity or operational capability, ensuring that it can withstand the rigors of tough drilling environments.
Weighing in at 12.5 tons, this rig strikes an optimal balance between weight and stability. The weight contributes to the rig’s stability during drilling operations, reducing vibrations and enhancing drilling accuracy. At the same time, it remains light enough to be transported conveniently using standard heavy-duty vehicles or trailers. This combination of weight and size makes it a practical choice for geological teams that require a reliable and portable drilling solution.
As a specialized Geological Drilling Rig Machine, the reverse circulation drilling rig excels in providing clean and uncontaminated rock and soil samples by utilizing the reverse circulation drilling technique. This method involves circulating drilling fluid down the annulus between the drill pipe and borehole wall and returning cuttings through the inner tube of the drill pipe. This approach minimizes sample contamination and allows for rapid and efficient sample retrieval, which is critical for accurate geological assessment and decision-making.
In summary, this Reverse Circulation Drilling Rig is an outstanding Geological Drilling Rig Machine that combines a powerful auxiliary winch, standardized 3-meter drill pipes with 102/114 mm diameter, compact dimensions of 7*2.1*2.9 meters, and a manageable weight of 12.5 tons. Its design and functionality ensure that it meets the diverse needs of geological exploration projects, delivering reliable, precise, and efficient drilling performance in a variety of field conditions. Whether for mineral exploration, environmental investigations, or geotechnical surveys, this rig stands out as a top choice for professionals seeking a dependable and high-performing Geological Drilling Rig Machine.
| Uphill angle | 21° |
| Weight | 12.5T |
| Drilling diameter | 105-450mm |
| Drill pipe diameter | 102/114mm |
| Air pressure | 1.6-6 Mpa |
| Moving speed | 3.5 Km/h |
| Max drilling depth | 600m |
| Axial pressure | 7T |
| Max rotary speed | 75/150 R/min |
| Fast feeding speed | 33 m/min |

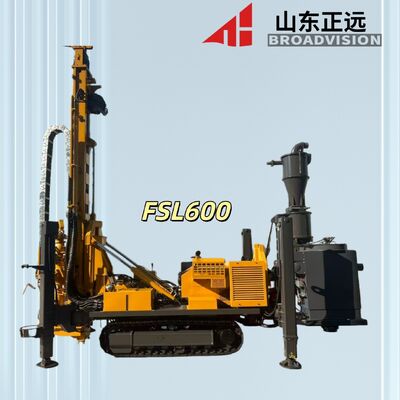

The Shandong Zhengyuan FSL600 Reverse Circulation Drilling Rig is a highly efficient Geological Drilling Rig Machine designed for diverse drilling applications. Originating from Shandong Province, this advanced rig combines robust performance with innovative technology, making it ideal for a wide range of geological and mining projects. With an air consumption range of 16-75m³/min and an air pressure capacity of 1.6-6Mpa, the FSL600 ensures optimal pneumatic power for deep and precise drilling operations.
This Geological Drilling Rig Machine is particularly suited for mineral exploration, groundwater drilling, and geotechnical investigations. Its maximum rotary torque of 12000/6000Nm and maximum rotary speed of 75/150 R/min provide the necessary force and speed to penetrate various rock formations efficiently. The fast lifting speed of 29m/min further enhances operational productivity, enabling quick repositioning and depth adjustments during drilling tasks.
The FSL600 model excels in scenarios where accurate and clean sample recovery is crucial, such as in mining exploration and environmental drilling. Its reverse circulation system minimizes sample contamination by circulating drilling fluids in a way that brings cuttings directly to the surface. This feature makes it an indispensable Geological Drilling Rig Machine for projects requiring high-quality core samples.
In addition to mining and water well drilling, this rig is also highly effective in construction and infrastructure projects where soil investigation and foundation analysis are necessary. The combination of high torque and variable speed allows it to adapt to different soil and rock conditions, ensuring reliable performance across various terrains.
Overall, the Shandong Zhengyuan FSL600 Reverse Circulation Drilling Rig stands out as a versatile and powerful Geological Drilling Rig Machine. Its technical specifications and operational capabilities make it an excellent choice for professionals seeking dependable drilling equipment for exploration, environmental, and construction applications.
Shandong Zhengyuan offers customized Product Customization Services for the Reverse Circulation Drilling Rig model FSL600, designed to meet diverse geological exploration needs. This Geological Drilling Rig Machine originates from Shandong Province and features a fast feeding speed of 33m/min, ensuring efficient drilling operations.
The FSL600 model is equipped with a powerful lifting force of 29T and supports drill pipes with a length of 3 meters and diameters of 102mm and 114mm, providing flexibility for various drilling requirements. Its air consumption ranges between 16-75m³/min, optimizing performance for different geological conditions.
As a leading Geological Drilling Rig Machine, the Shandong Zhengyuan FSL600 can be tailored to specific project demands, including adjustments in feeding speed, lifting capacity, and drill pipe specifications, ensuring a reliable and efficient drilling solution for your geological exploration projects.
Our Reverse Circulation Drilling Rig comes with comprehensive technical support and services to ensure optimal performance and reliability. We provide detailed installation guidance, operator training, and maintenance support to help you maximize the efficiency of your drilling operations. Our team of experienced technicians is available to assist with troubleshooting, spare parts supply, and regular servicing schedules. We are committed to delivering prompt and effective solutions to minimize downtime and enhance productivity. Additionally, customized service plans and on-site support can be arranged to meet the specific needs of your project. Trust our expertise to keep your Reverse Circulation Drilling Rig operating at peak condition.
