| Brand Name: | Shandong Zhengyuan |
| Model Number: | SL600S |
| MOQ: | 1 SET |
| Price: | 79500 |
| Payment Terms: | 30%TT FOR DEPOIST |
| Supply Ability: | 30 SETS / M |

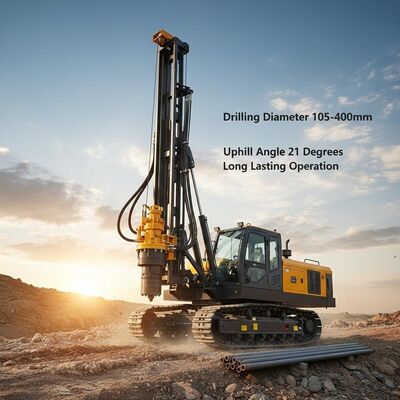

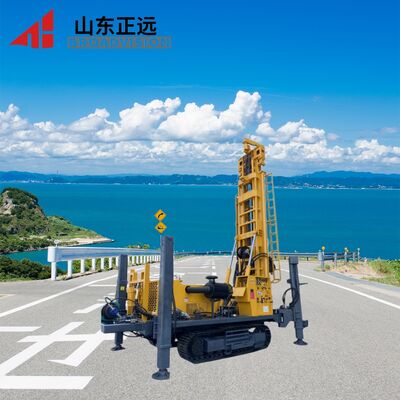

The Crawler Water Well Drilling Rig model SL600S is a highly efficient and robust drilling machine designed specifically for water well construction. Engineered to meet the demanding requirements of deep well drilling, this rig offers exceptional performance and reliability, making it an ideal choice for contractors and companies involved in water resource development. With its advanced features and powerful specifications, the Crawler Water Well Drilling Rig SL600S is capable of handling a variety of challenging drilling environments.
One of the standout features of the Crawler Water Well Drilling Rig SL600S is its impressive maximum drilling depth of up to 600 meters. This capability allows operators to access deep underground water sources, which is essential for regions where shallow water tables are insufficient. The rig’s strong lifting force of 35 tons ensures that heavy drilling tools and pipes can be handled with ease and safety, facilitating smooth operations even in the most demanding conditions.
The rig is powered by an air pressure system that operates within a range of 1.2 to 3.5 mega pascals (MPa). This air pressure range is optimized to provide efficient power transmission and effective pneumatic operation of the drilling components. The use of air pressure in this range helps in maintaining consistent drilling performance, reducing downtime, and enhancing the overall productivity of the rig.
Additionally, the Crawler Water Well Drilling Rig SL600S boasts a maximum rotary torque of 12,000 Newton-meters (Nm) on high speed and 6,000 Nm on low speed. This dual torque capability allows the rig to adapt to different drilling conditions, providing sufficient rotational force to penetrate various types of soil and rock formations. The high torque is especially beneficial when encountering hard strata, while the lower torque setting is ideal for softer ground, making the rig versatile across a wide range of geological environments.
This drilling rig is mounted on a crawler chassis, which gives it excellent mobility and stability on rough terrains. The crawler system allows the rig to traverse uneven ground, mud, and slopes with ease, enabling it to reach remote or difficult-to-access drilling sites. The stability offered by the crawler tracks also enhances drilling accuracy and safety, reducing the risk of equipment tipping or shifting during operations.
Designed with operator comfort and safety in mind, the Crawler Water Well Drilling Rig SL600S features an ergonomic control cabin and advanced safety mechanisms. The controls are intuitive, allowing for precise operation and better handling of the drilling process. Safety features include emergency stop systems, overload protection, and secure lifting arrangements, ensuring a safe working environment for the crew.
The Crawler Water Well Drilling Rig is not only powerful but also built for durability and low maintenance. High-quality materials and components are used throughout the rig to withstand harsh working conditions and minimize wear and tear. This results in a longer service life and reduced operational costs, making it a cost-effective investment for water well drilling projects.
In summary, the Crawler Water Well Drilling Rig SL600S is a state-of-the-art drilling machine designed to deliver outstanding performance in water well drilling applications. Its combination of a powerful air pressure system, substantial lifting force, high rotary torque, and deep drilling capability makes it an excellent solution for accessing underground water sources efficiently and safely. Whether deployed in rural water supply projects or large-scale irrigation schemes, this rig provides the reliability and versatility needed to meet diverse drilling challenges.
Choosing the Crawler Water Well Drilling Rig means investing in technology that enhances productivity, ensures safety, and supports sustainable water resource development. With its exceptional specifications and rugged design, the SL600S model stands out as a leader in the water well drilling industry.
| Model | SL600S |
| Lifting Force | 35T |
| Air Pressure | 1.2-3.5mpa |
| Jacks Stroke | 1.6m |
| Max Rotary Torque | 12000/6000Nm |
| Max Drilling Depth | 600M |
| Max Rotary Speed | 90/180R/min |
| Drill Pipe Diameter | 89/102mm |
| Drill Pipe Length | 6m |
| Weight of the Rig | 12.5T |
The Crawler Water Well Drilling Rig, model SL600S, manufactured by Shandong Zhengyuan in Shandong Province, China, is a highly efficient and versatile drilling machine designed for a variety of application occasions and scenarios. Certified by ISO, this rig is built to meet stringent quality standards, ensuring reliable performance in demanding environments. With a weight of 12.5 tons and a maximum rotary speed of 90/180R/min, the Crawler Water Well Drilling Rig is capable of drilling diameters ranging from 105mm to 400mm, making it suitable for numerous water well drilling projects.
This rig is especially suited for agricultural irrigation projects where access to clean water sources is critical. Its powerful lifting force of 35 tons and 6-meter drill pipe length allow it to efficiently penetrate different soil layers and rock formations to reach underground water reservoirs. The crawler design provides excellent mobility and stability on rough, uneven, or muddy terrains, making it ideal for remote locations where traditional drilling equipment might struggle.
In addition to agricultural use, the Crawler Water Well Drilling Rig is extensively used in municipal water supply projects, mining operations, and geothermal drilling. Its robust design and advanced technology enable it to handle complex drilling tasks with precision and speed. The rig’s ability to be packaged according to customer requirements and its delivery time of just 20 days ensure that projects can commence promptly and efficiently.
Furthermore, the rig is suitable for environmental and geological exploration, including groundwater monitoring and soil sampling. Its adaptability and powerful performance make it an indispensable tool for contractors and engineers working in diverse fields. With a supply ability of 30 sets per month and a competitive price of $79,500 per set, the Crawler Water Well Drilling Rig offers excellent value for investment.
Overall, the Crawler Water Well Drilling Rig by Shandong Zhengyuan is an ideal solution for anyone requiring a reliable, high-performance drilling rig. Whether in agriculture, municipal infrastructure, mining, or environmental exploration, this rig’s specifications and features make it a trusted choice for a wide range of drilling scenarios.
Shandong Zhengyuan offers customized Crawler Water Well Drilling Rig services with the model number SL600S, originating from Shandong Province, China. Our Crawler Water Well Drilling Rig is ISO certified, ensuring high quality and reliability for your drilling needs.
We accept a minimum order quantity of 1 SET for the Crawler Water Well Drilling Rig, priced competitively at $79,500. Packaging details can be customized according to customer requirements to ensure safe and efficient delivery.
The delivery time for the Crawler Water Well Drilling Rig is approximately 20 days, with payment terms requiring a 30% TT deposit. Our supply ability is 30 SETS per month, allowing us to meet your project timelines effectively.
Key specifications of the Crawler Water Well Drilling Rig include a drilling diameter range of 105-400mm, a lifting force of 35T, and drill pipe diameters of 89mm or 102mm with a length of 6m. The rig supports a maximum drilling depth of up to 600 meters, making it suitable for various water well drilling applications.
Our Crawler Water Well Drilling Rig is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed user manuals, on-site installation assistance, and operator training to help you get the most out of your drilling rig.
Our experienced technical team is available to offer troubleshooting guidance, routine maintenance advice, and spare parts recommendations to minimize downtime and extend the life of your equipment. We also offer regular maintenance programs and inspection services to keep your drilling rig operating efficiently.
In addition, we provide software updates and system upgrades as needed to enhance the functionality and reliability of the rig. Our commitment is to deliver prompt and efficient support throughout the lifecycle of your Crawler Water Well Drilling Rig, ensuring your drilling projects are completed successfully and on time.
