| Brand Name: | Shandong Zhengyuan |
| Model Number: | SL600S |
| MOQ: | 1 SET |
| Price: | 79500 |
| Payment Terms: | 30%TT FOR DEPOIST |
| Supply Ability: | 30 SETS / M |

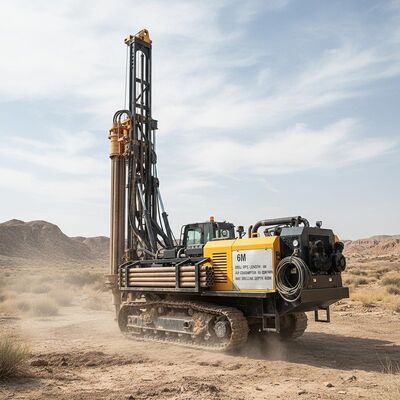

The Crawler Water Well Drilling Rig is a highly efficient and robust machine designed for a wide range of water well drilling applications. Engineered to deliver exceptional performance in various terrains, this rig combines advanced technology with durable construction, making it an ideal choice for both commercial and industrial drilling projects. The Crawler Water Well Drilling Rig stands out for its reliability, ease of operation, and adaptability, ensuring that users can achieve optimal drilling results with minimal downtime.
One of the prominent features of the Crawler Water Well Drilling Rig is its impressive maximum rotary speed of 90/180R/min. This dual-speed capability allows operators to adjust the drilling speed according to the specific requirements of the geological conditions encountered during drilling. Whether drilling through soft soil or hard rock formations, the rig’s variable rotary speed ensures efficient penetration and stable operation, thus enhancing overall productivity.
The rig is equipped with drill pipes that are 6 meters in length, providing extended reach and reducing the need for frequent pipe changes. This feature significantly improves drilling efficiency, especially in deep well applications. The 6-meter drill pipes are designed to withstand high stress and pressure, ensuring durability and safety throughout the drilling process. Additionally, the rig’s drill pipe system is compatible with various drilling tools and accessories, offering versatility for different drilling techniques.
Operating under an air pressure range of 1.2-3.5mpa, the Crawler Water Well Drilling Rig utilizes pneumatic power to optimize drilling performance. The adjustable air pressure allows for fine-tuning of the drilling process, ensuring effective removal of cuttings and maintaining a clean borehole. This air pressure range also contributes to the rig’s ability to handle diverse drilling environments and geological conditions, enhancing its adaptability and efficiency.
Despite its powerful capabilities, the Crawler Water Well Drilling Rig maintains a manageable weight of 12.5 tons. This weight balance provides the rig with excellent stability during operation while ensuring mobility across rugged and uneven terrains. The crawler tracks enable smooth movement and positioning, allowing the rig to access remote and challenging drilling sites with ease. The compact yet sturdy design of the rig makes transportation and setup straightforward, reducing project preparation time.
The rig’s jacks have a stroke length of 1.6 meters, which plays a crucial role in stabilizing the machine during drilling operations. The extended stroke length allows for effective leveling and firm support, minimizing vibrations and enhancing drilling accuracy. This stability feature is essential for maintaining the integrity of the borehole and ensuring the safety of the drilling crew. The jacks are also designed for easy operation, enabling quick adjustments to adapt to varying site conditions.
In summary, the Crawler Water Well Drilling Rig is a versatile and powerful drilling solution that combines high rotary speed, extended drill pipe length, adjustable air pressure, and stable support mechanisms into a single, efficient machine. Its 12.5-ton weight and crawler mobility make it suitable for a wide range of drilling environments, from flat plains to rugged landscapes. Whether for agricultural irrigation, industrial water supply, or municipal water projects, the Crawler Water Well Drilling Rig offers reliable performance and exceptional value. Investing in this rig means gaining access to advanced drilling technology designed to meet the demands of modern water well drilling with precision and efficiency.
| Model | SL600S |
| Max Rotary Torque | 12000/6000 Nm |
| Max Rotary Speed | 90/180 R/min |
| Max Drilling Depth | 600 M |
| Drill Pipe Length | 6 M |
| Drill Pipe Diameter | 89/102 mm |
| Lifting Force | 35 T |
| Air Pressure | 1.2-3.5 Mpa |
| Uphill Angle | 21 ° |
| Weight of the Rig | 12.5 T |

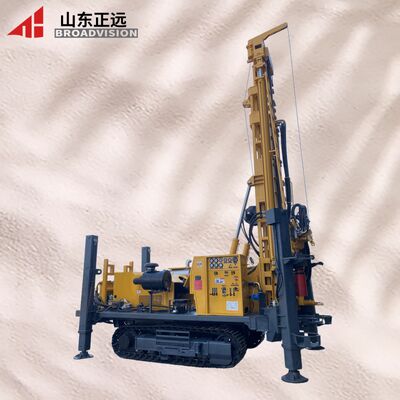

The Shandong Zhengyuan SL600S Crawler Water Well Drilling Rig is a highly efficient and versatile drilling machine designed specifically for water well drilling applications. Manufactured in Shandong Province, China, this rig boasts ISO certification, ensuring high quality and reliability in various challenging environments. With a minimum order quantity of just 1 set and a competitive price of 79,500 USD, it is an attractive choice for contractors and enterprises involved in water well construction.
The Crawler Water Well Drilling Rig is ideally suited for a wide range of application occasions and scenarios. Due to its crawler design, the rig exhibits excellent mobility and stability on rough, uneven, or muddy terrains, which are common in remote drilling sites. Its capability to work on uphill angles up to 21° further enhances its adaptability to mountainous and hilly regions, making it perfect for water well drilling in diverse geographic conditions.
This rig’s drilling diameter range of 105-400mm allows it to meet various water well depths and diameter requirements, serving agricultural irrigation, rural water supply, urban water projects, and industrial water extraction needs. The 6-meter drill pipe length combined with a 1.6-meter jack stroke improves drilling efficiency and depth reach, enabling operators to create wells that can access deep underground water sources effectively.
Weighing 12.5 tons, the SL600S model maintains a robust structural design while remaining transportable to different sites without excessive logistical challenges. The packaging details can be customized according to customer requirements, ensuring the rig arrives safely and ready for immediate deployment. With a supply ability of 30 sets per month and a delivery time of just 20 days, Shandong Zhengyuan guarantees timely fulfillment of orders to meet project schedules.
The payment terms, which require a 30% TT deposit, offer a straightforward and secure transaction process. Overall, the Crawler Water Well Drilling Rig by Shandong Zhengyuan is an excellent equipment choice for contractors engaged in water well construction across agricultural, municipal, and industrial sectors, particularly in locations demanding high maneuverability and reliable drilling performance.
Shandong Zhengyuan offers product customization services for the Crawler Water Well Drilling Rig, model number SL600S, manufactured in Shandong Province, China. Our Crawler Water Well Drilling Rig is ISO certified and designed to meet your specific drilling needs.
We accept a minimum order quantity of 1 SET for the Crawler Water Well Drilling Rig, priced at $79,500. Packaging details are customized according to the customer's requirements to ensure safe and efficient delivery.
The delivery time for the Crawler Water Well Drilling Rig is approximately 20 days. Payment terms require a 30% TT deposit to initiate the order. We have a supply ability of 30 SETS per month to meet large scale demands.
Key technical specifications of the Crawler Water Well Drilling Rig include a drill pipe length of 6 meters, drilling diameter ranging from 105 to 400 mm, a maximum rotary torque of 12000/6000 Nm, and air pressure between 1.2 to 3.5 Mpa. The rig is capable of operating at an uphill angle of 21°.
Choose Shandong Zhengyuan for reliable, efficient, and customizable Crawler Water Well Drilling Rig solutions tailored to your project requirements.
Our Crawler Water Well Drilling Rig is designed for optimal performance and durability in a variety of drilling conditions. To ensure the best experience with your drilling rig, we offer comprehensive technical support and services.
Our technical support team is available to assist you with installation guidance, operational training, troubleshooting, and maintenance advice. We provide detailed manuals and instructional materials to help you understand the rig’s features and functionalities.
We offer regular maintenance services to keep your drilling rig in peak condition, including inspections, parts replacement, and system diagnostics. Our service technicians are trained to handle repairs efficiently, minimizing downtime and ensuring continuous operation.
Spare parts and accessories for the Crawler Water Well Drilling Rig are readily available to meet your needs. We recommend using genuine parts to maintain the rig’s performance and safety standards.
For complex technical issues, our expert engineers provide remote support and, if necessary, on-site assistance to resolve problems quickly and effectively.
We are committed to supporting your drilling projects with reliable service and expert advice to maximize the productivity and lifespan of your Crawler Water Well Drilling Rig.
