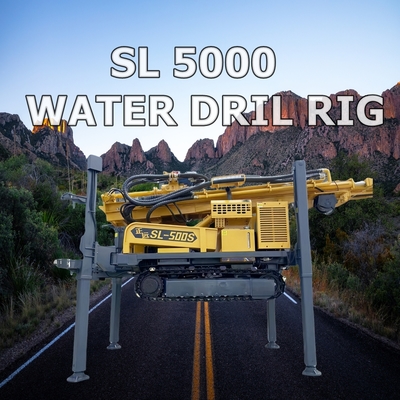

Stable Deep Rock Well Drilling Rig 500m High Precision Corrosion Resistant

1. Overview

SL500S This drilling rig is equipped with a hydraulic system for lifting the drilling frame, picking up and unloading the drill pipe, rotating and feeding, outriggers, winches, walking, etc. it can be used to work directly with 6-metre drill pipe or 6-metre casing, which greatly reduces the labour intensity and improves the construction efficiency and quality of the project. Each type of drilling rig can be converted into vehicle chassis.

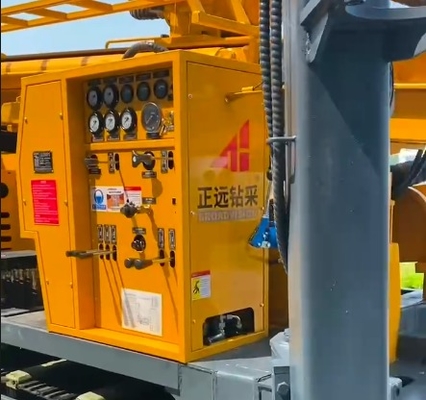

It can drill holes in different strata (rock layers, mud layers, sand layers) with a maximum diameter of up to 500mm. The unique convex block design and centralized control operating system are easy to maintain and operate. This machine adopts excavator track chassis, with high off-road performance, and can also be installed on trucks for stronger maneuverability.

The Zhengyuan series crawler drilling rig can use mud drilling in soft formations and air down the hole hammer to drill various formations in rock drilling. The down the hole hammer is used for rock drilling, and the slag is discharged through air pressure

Advantages of fast drilling

1.High speed drilling performance

The 500m water well drilling rig adopts a high-speed power head design, significantly improving drilling efficiency. By increasing the rotation speed and accelerating the contact frequency between the drilling tool and the formation, rapid penetration can be achieved, especially in soft formations.

2.Save drilling time

Compared with traditional drilling rigs, the 500m water well drilling rig can increase drilling speed by about 30% under the same geological conditions, significantly shorten the construction period, and reduce construction costs.

3.Comparison of drilling speed

The efficient drilling capability and optimized operation process significantly shorten the single drilling cycle, effectively saving overall project time and accelerating project progress.

4.Efficient rock breaking ability

The drilling rig is equipped with reinforced drilling tools to enhance the rock breaking effect. By utilizing the high hardness characteristics of alloy drill bits, rocks can be effectively cut, reducing the energy required for a single drilling operation and improving overall operational efficiency.

Accurate vertical positioning

Vertical drilling verticality: The drilling rig adopts advanced vertical drilling technology to ensure that the verticality is controlled within a very small range and improve the quality of the wellbore.

Vertical positioning error range: The vertical positioning error range is controlled within ± 0.5 °, and the vertical drilling accuracy is ensured through high-precision sensors and algorithm optimization.

Vertical positioning adjustment method: The system can monitor the vertical positioning status in real time and achieve rapid adjustment of vertical positioning by intelligently adjusting drilling parameters.

Long term reliability of vertical positioning: The vertical positioning system of the drilling rig has long-term reliability and can maintain high accuracy during long-term construction, providing stable support for water well drilling.

Belt and chain adjustment: Regularly check the tightness of the drive belt and chain, adjust them in a timely manner to avoid slipping or excessive wear. Record adjustment parameters for future maintenance reference
Component cleaning frequency: Regularly clean the radiator and cooling system to prevent dust from clogging. Clean the air filter and keep the intake air unobstructed. Clean the surface of drilling tools, frames, and other components to reduce corrosion.
Filter replacement cycle
Regularly replace hydraulic oil and fuel filters according to the working environment and frequency of use. It is generally recommended to replace the oil every 200 hours of operation to maintain cleanliness and extend the lifespan of the equipment.
Lubrication requirements
According to the equipment manual requirements, regularly add designated lubricating oil to each lubrication point. Focus on lubricating high load parts such as transmission shafts and bearings to ensure sufficient lubrication and reduce friction losses. Record lubrication time and amount for tracking lubrication effectiveness
Daily insapection points
Check the appearance of the drilling rig for damage or abnormal wear, ensuring that all fasteners are not loose. Check if the electrical system connections are good and if the cables are not damaged. Verify the oil level observation of the hydraulic system for any signs of leakage. Monitor the engine running sound to ensure there is no abnormal noise. Check the wear and tear of drill rods, drills, and other tools, and replace damaged parts in a timely manner.
Quarterly excessive items: Conduct an unboxing inspection of the gearbox and gearbox, and replace worn parts. Check and replace aging seals to prevent leakage. Verify instruments and sensors to ensure accurate data.
Annual comprehensive maintenance: Conduct a comprehensive disassembly inspection, cleaning, inspecting, repairing, or replacing all components. Perform non-destructive testing on key components to prevent hidden faults. Update maintenance records and specify the maintenance plan for the next year.
Monthly maintenance tasks
Thoroughly inspect the electrical system and test whether all functions are normal. Check and adjust the hydraulic system pressure to ensure stable operation. Clean the sediment at the bottom of the fuel tank and keep the oil clean.
Component replacement plan
Based on the service life and maintenance records of the components, specify an annual replacement plan. Prioritize the replacement of vulnerable parts and critical components to ensure equipment reliability. Reserve commonly used spare parts to shorten maintenance cycles.

SL500S WTAER DRILL RIG DETAILS

WHO ARE WE?

FAQ:

1. Are you a trading company or a manufacturer?

We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.

2. How can we guarantee quality?

Always a pre-production sample before mass production;always final inspection is done before shipment;and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.

3. How to inspect the goods?

1) Support customers to come to the factory for on-site inspection.

2) Support customers to designate third-party companies to inspect goods.

3) Support video inspection.

4. Do you have after-sales service?

Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.

5. How about quality assurance?

We provide a one-year quality guarantee for the main machine of the machine.

6. How long is your delivery cycle?

1) In the case of stock, we can deliver the machine within 7 days.

2) Under standard production, we can deliver the machine within 15-20 days.

3) In the case of customization, we can deliver the machine within 20-25 days.

7.Can you do OEM for me?

We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
