| Brand Name: | ZHENGYUAN |
| Model Number: | FSL600 |
| MOQ: | 1set |
| Price: | $40000/set |
| Payment Terms: | tt,L/C,T/T,Western Union,MoneyGram |
| Supply Ability: | 25 sets / month |
| Attribute | Value |
|---|---|
| Travelling Speed | 6km/h |
| Drilling Diameter | 105-900mm |
| Using Air Pressure | 1.65-8mpa |
| Type | Rotary Drilling Rig |
| Max Rotary Torque | 30000/15000Nm |
| Fast Feeding Speed | 51m/min |
| Drilling Method | Rotary |
| Condition | New |
| Engine | Cummins |
| Engine Power | 264kw |

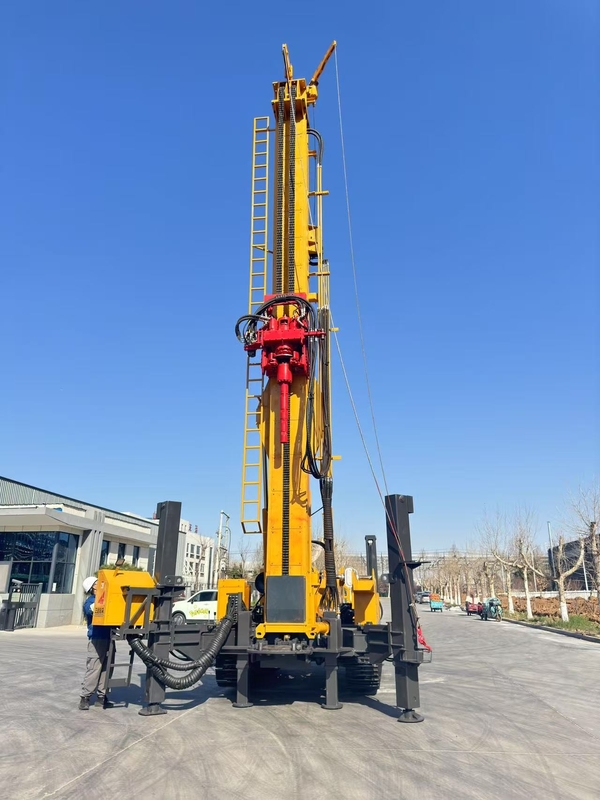

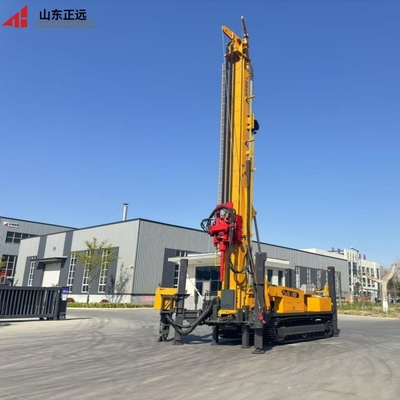

The Crawler Water Well Drilling Rig is a cutting-edge piece of equipment designed for efficient and precise drilling operations. This brand new rig delivers top-notch performance and reliability for various drilling applications, including water well drilling, geotechnical exploration, and mineral exploration.
Featuring a rotary drilling method, this rig offers exceptional versatility with drilling diameters ranging from 105mm to 900mm. The adjustable air pressure system (1.65-8mpa) provides precise control for optimal drilling results in different conditions.
With a travelling speed of 6km/h, the rig moves efficiently between drilling locations, enhancing productivity on job sites. Its robust construction and powerful Cummins 264kw engine ensure consistent, high-quality performance.
| Technical parameters | Unit | SL1200K |
|---|---|---|
| Max drilling depth | M | 1200K |
| Drilling diameter | mm | 105-900 |
| Air pressure | Mpa | 1.65-8 |
| Air consumption | m³/min | 16-120 |
| Drill pipe length | m | 9.6 |
| Drill pipe diameter | mm | 114/127 |
| Axial pressure | T | 10 |
| Lifting force | T | 60 |
| Fast lifting speed | m/min | 29 |
| Fast feeding speed | m/min | 51 |
| Max rotary torque | Nm | 30000/15000 |
| Max rotary speed | r/min | 85/170 |
| Big auxiliary winch lifting force | T | 5 |
| Small auxiliary winch lifting force | T | 2.5 |
| Jacks stroke | m | 1.7 |
| Drilling efficiency | m/h | 10-35 |
| Moving speed | Km/h | 6 |
| Uphill angle | Slope | 21° |
| Weight of the rig | T | 25 |
| Dimension | m | 11.8*2.6*2.97 |
| Engine | / | Cummins 264KW |
The Crawler Water Well Drilling Rig is a powerful and efficient drilling solution suitable for various applications including:
Its robust construction and advanced features make it ideal for challenging environments, delivering reliable performance across different drilling conditions and project requirements.
